Active and preferred
RoHS Compliant

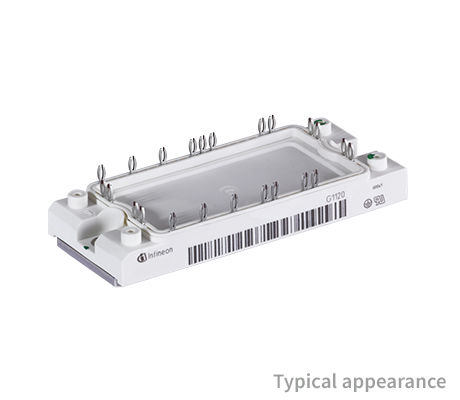

IFF300B17N2E4P_B11

1700 V, 300 A dual IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IFF300B17N2E4P_B11
IFF300B17N2E4P_B11
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (width)
    45 mm
  • Dimensions (length)
    107.5 mm
  • Features
    PressFIT, Current sense shunts, TIM
  • Housing
    EconoPACK™ 2
  • IC(nom) / IF(nom)
    300 A
  • IC max
    300 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
Recommended
OPN
IFF300B17N2E4PB11BPSA1
Product Status active and preferred
Infineon Package AG-ECONO2B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO2B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPACK™ 2 1700 V, 300 A dual IGBT Module with TRENCHSTOP™IGBT4, current sense shunts, Emitter controlled Diode, NTC, PressFIT and pre-applied Thermal Interface Material .

Features

  • High power & thermal cycling capab.
  • Well-proven EconoPACK™ 2 housing
  • Dual configuration w/ shunts & NTC
  • Allows accurate current sensing
  • Up to 300 A nominal current
  • 150 °C operation junction temp.
  • Excellent power cycling capability
