IDWD40G120C5

1200 V Silicion Carbide Schottky diode in TO-247-2 package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IDWD40G120C5
IDWD40G120C5
Data Sheet

Product details

  • I(FSM) max
    290 A
  • IF max
    109 A
  • IR
    23 A
  • Package
    PG-TO247-2
  • Ptot max
    402 W
  • QC
    202 nC
  • Qualification
    Industrial
  • RthJC
    0.27 K/W
  • VF
    1.4 V
Recommended
OPN
IDWD40G120C5XKSA1
Product Status active and preferred
Infineon Package PG-TO247-2
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package PG-TO247-2
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

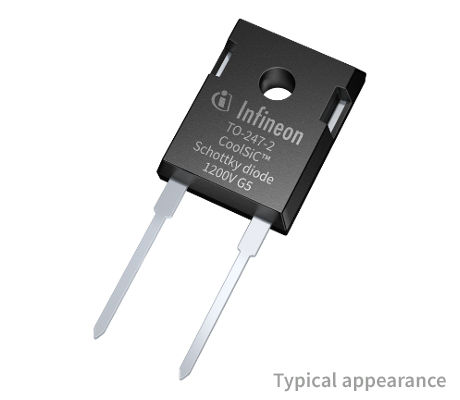

CoolSiC™ Schottky diode 1200 V, 40 A G5 in a TO-247 real 2-pin package, for easy exchange of bipolar Si diodes. The expanded 8.7 mm creepage and clearance distances offer extra safety in high-pollution environments. Combined with a Si IGBT or super-junction MOSFET a CoolSiC™ diode raises efficiency up to 1% compared to next best Si diode alternative. The output power of PFC and DC-DC stages can thus be increased, by 40% or more.

Features

  • No reverse recovery current
  • No forward recovery voltage
  • Temp.-independ. switching behavior
  • Low forward voltage*
  • *even at high operating temperature
  • Tight forward voltage distribution
  • High surge current capability
