IDFW60C65D1

650 V silicon power diode in TO-247 advanced isolation package
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IDFW60C65D1
IDFW60C65D1
Data Sheet

Product details

  • Configuration
    Common Cathode
  • I(FSM) max
    240 A
  • IF
    60 A
  • IR max
    40 µA
  • Irrm
    17.6 A
  • Mounting
    THT
  • Operating Temperature
    -40 °C to 175 °C
  • Package
    TO-247
  • Ptot max
    100 W
  • Qrr
    0.76 µC
  • RthJC max
    1.5 K/W
  • trr
    112 ns
  • VF
    1.45 V
  • Voltage Class max
    650 V
Recommended
OPN
IDFW60C65D1XKSA1
Product Status active and preferred
Infineon Package
PG-HSIP247-3
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-HSIP247-3
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Rapid 1 switching 650 V, 60 A emitter controlled silicon power diode in a TO-247 advanced isolation package for a best cost efficient solution.

Features

  • 650V emitter controlled technology
  • Temperature stable behaviour
  • Low forward voltage (VF)
  • Low reverse recovery charge (Qrr)
  • Low reverse recovery current (Irrm)
  • 2500 VRMSelectrical isolation
  • 100% tested isolated mounted surface
  • Pb-free plating: RoHS compliant

Benefits

  • Easy paralleling
  • No need of isolation/thermal grease
  • Reduction in assembling time
  • eliminated faults of isolation foil
  • Up to 10°C lower Tc
  • Up to 20% Iout increase
  • Manufacturing process control

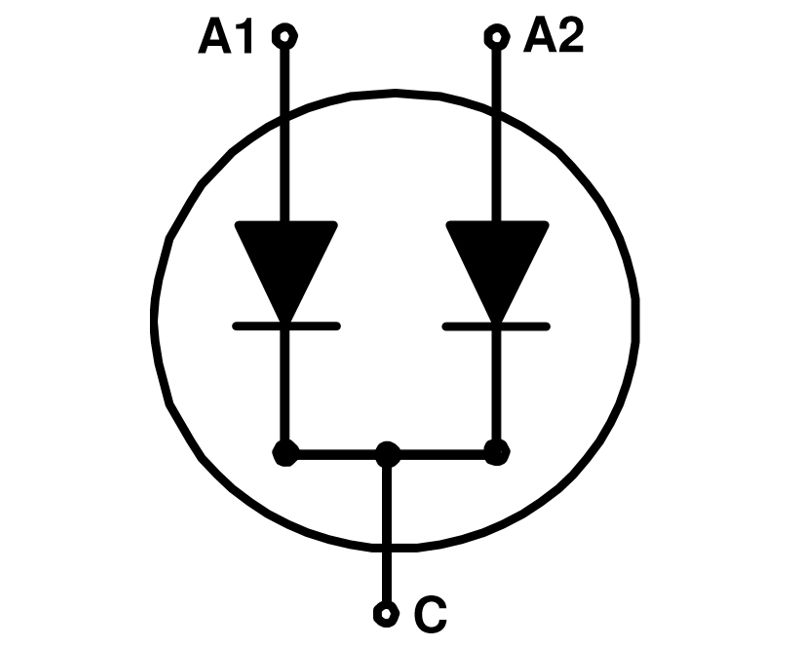

Diagrams

IDFWxx
IDFWxx
IDFWxx IDFWxx IDFWxx
×
modalImg
