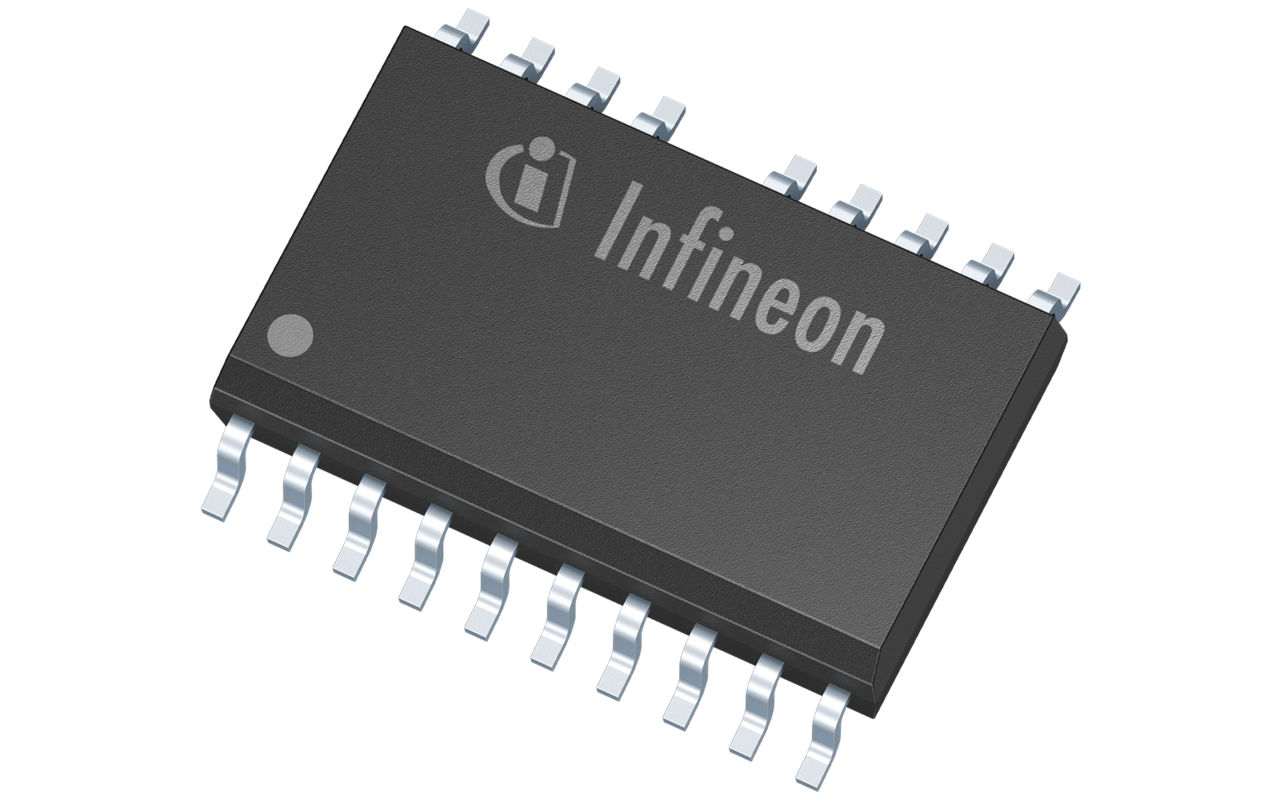

ICL5102HV

Integrated two-stage PFC + LLC/LCC resonant half-bridge controller for LED drivers in DSO-19 package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ICL5102HV
ICL5102HV
Data Sheet

Product details

  • Budgetary Price €/1k
    1.55
  • Comments
    High Performance PFC + Resonant Controller for LLC / LCC Topologies
  • Output characteristics
    Constant current+constant voltage
  • Package
    PG-DSO-19
  • Switching Frequency
    22 kHz to 500 kHz
  • Topology
    PFC + LLC/LCC
  • Type
    Controller
Recommended
OPN
ICL5102HVXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-19
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSO-19
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ICL5102HV control IC for LED drivers offers a unique one-package solution for lighting applications up to 350W, supporting LLC/LCC topology. It is designed to deliver best performance of total harmonic distortions (THD) and power factor (PF). Compared to level-shifter technology, the integrated coreless transformer reduces the loss at high operation frequency, and also enhances the capability of handling huge negative voltage (-600V on HSGND).

Features

  • Coreless transformer HS drive
  • 480VAC capable
  • Resonant half-bridge (HB) controller
  • Maximum 500kHz HB switching frequency
  • Resonant HB BM ensures power limitation
  • Excellent system efficiency up to 94%
  • Various safety features

Benefits

  • PF enable system level optimization
  • Reduced variants of products
