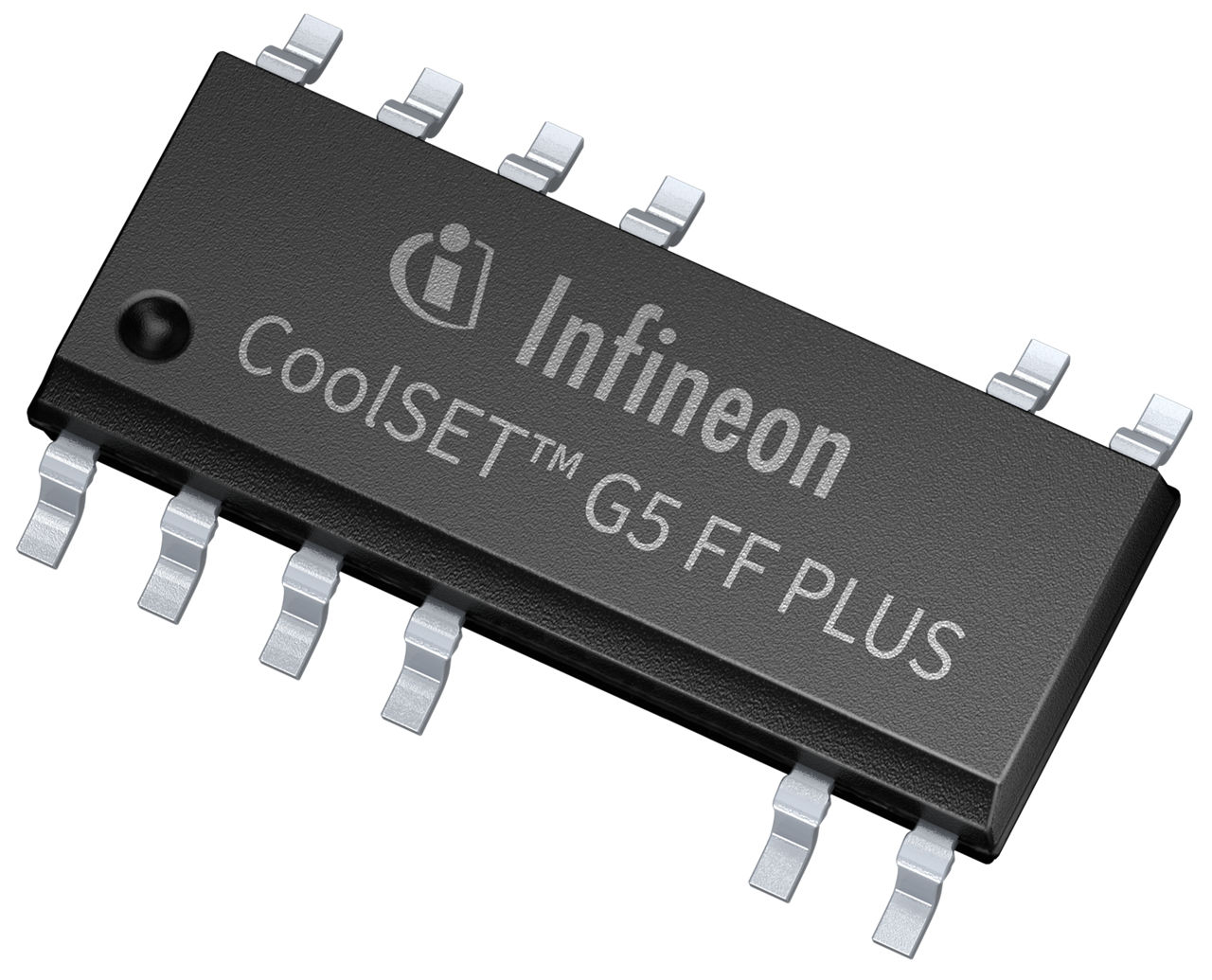

ICE5AR0680AG-1

125 kHz offline flyback and buck controller with integrated 800 V CooMOS™ superjunction MOSFET supporting isolated and non-isolated topologies
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ICE5AR0680AG-1
ICE5AR0680AG-1
Data Sheet

Product details

  • ESD Protection max
    2 kV
  • ICC
    4.18 mA
  • Mounting
    SMT
  • Operating Temperature
    -40 °C to 129 °C
  • Pout max
    40 W
  • RDS (on) max
    0.71 Ω
  • Switching Frequency
    100 kHz
  • Topology
    Flyback Non-isolated flyback
  • VCC
    10.4 V to 29 V
  • VDS max
    800 V
Recommended
OPN
ICE5AR0680AG1XUMA1
Product Status active and preferred
Infineon Package
PG-DSO-12
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSO-12
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Regulation is made easy thanks to an integrated error amplifier for non-isolated topologies minimizing the external BOM. The DSO-12 package offers a high level of integration that provides a comprehensive suite of protection features, frequency jittering to minimize EMI, and frequency reduction in tandem with the decrease of load to improve overall efficiency. On top, the active burst mode improves light-load/standby performance.

Features

  • Integrated 800 V CoolMOS™
  • Avalanche rugged CoolMOS™
  • Load dependent frequency reduction
  • Start-up with Cascode configuration
  • Frequency jitter and soft gate driving
  • Integrated error amplifier
  • Increased pin voltage rating
  • Comprehensive protections w/o latching
  • Selectable Burst Mode

Benefits

  • Ease of system design
  • High reliability
  • Improved overall system efficiency
  • Fast startup time
  • Low EMI
  • Supports isolated/non-isolated topology
  • Low standby power
