Active and preferred
RoHS Compliant

IAUCN04S7L053D

40 V, N-Ch, 5.34mΩ max, Automotive MOSFET, Dual SSO8 (5x6), OptiMOS™ 7
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUCN04S7L053D
IAUCN04S7L053D
ea.

Product details

  • ID (@25°C) max
    60 A
  • Launch year
    2024
  • Operating Temperature
    -55 °C to 175 °C

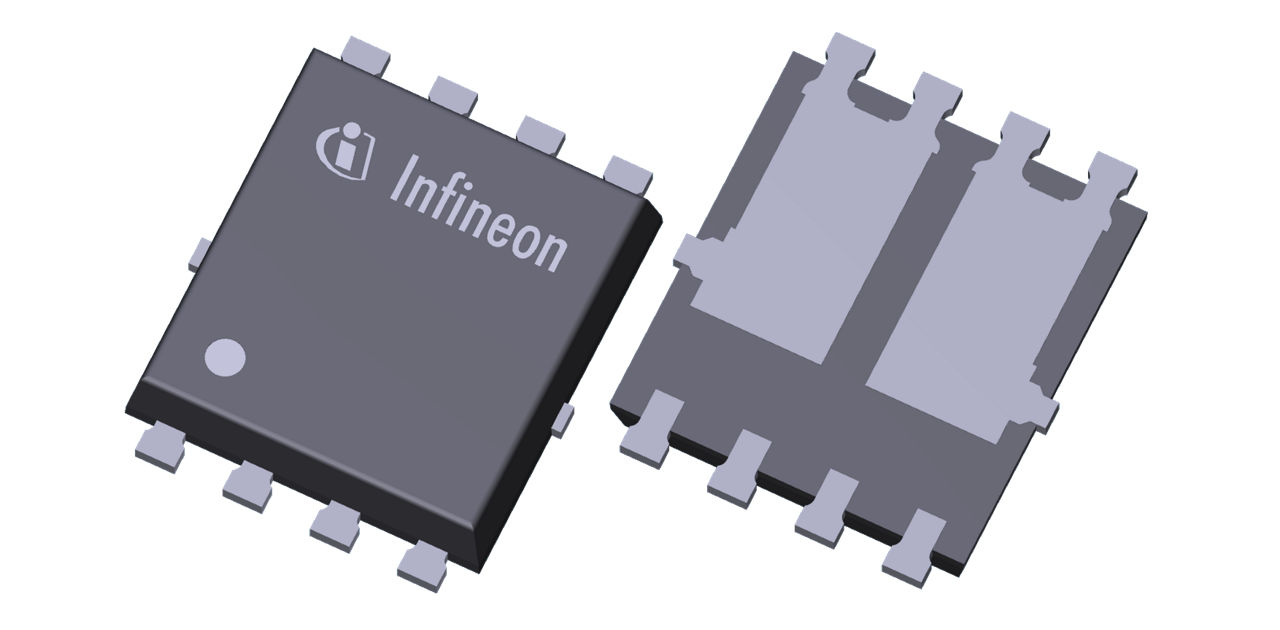

  • Package
    PG-TDSON-8
  • Currently planned availability until at least
    2038
  • Polarity
    N+N
  • QG (typ @10V)
    11 nC
  • QG (typ @10V) max
    14 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    5.34 mΩ
  • Technology
    OptiMOS™-7
  • VDS max
    40 V
  • VGS(th)
    1.8 V
OPN
IAUCN04S7L053DATMA1
Product Status active and preferred
Infineon Package
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
ea. in stock

Product Status
Active
Infineon Package
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • OptiMOS™ 7 40 V power MOSFET
  • N-channel-Enhancement mode-Logic Level
  • Extended qualification beyond AEC-Q101
  • Enhanced electrical testing
  • Robust design
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device

Applications
