Active and preferred
RoHS Compliant

IAUAN04S7N004

40 V, N-Ch, 0.39mΩ max, Automotive MOSFET, sTOLL (7x8), OptiMOS™ 7
Data Sheet

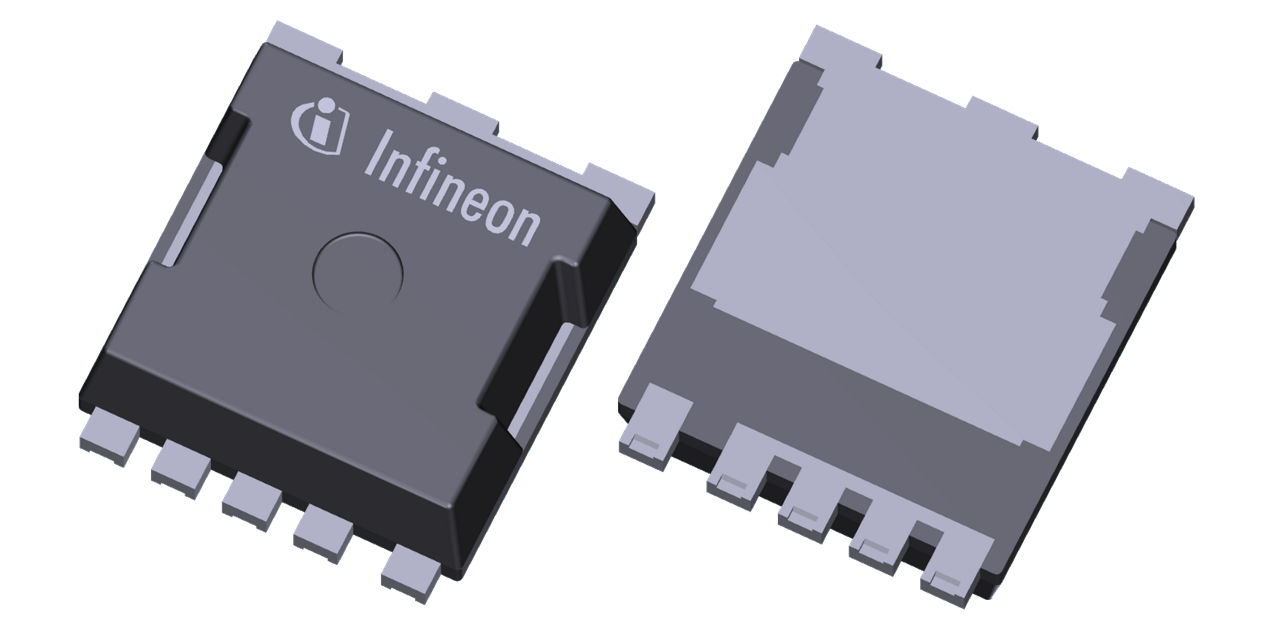

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUAN04S7N004
IAUAN04S7N004
Data Sheet

Product details

  • ID (@25°C) max
    280 A
  • Launch year
    2024
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PG-HSOF-5
  • Currently planned availability until at least
    2038
  • Polarity
    N
  • QG (typ @10V)
    144 nC
  • QG (typ @10V) max
    190 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    0.39 mΩ
  • Technology
    OptiMOS™-7
  • VDS max
    40 V
  • VGS(th)
    2.6 V
Recommended
OPN
IAUAN04S7N004AUMA1
Product Status active and preferred
Infineon Package
PG-HSOF-5
Package Name sTOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-HSOF-5
Package Name sTOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • OptiMOS™ 7 40 V power MOSFET
  • N-channel-Enhancement mode-Normal Level
  • Extended qualification beyond AEC-Q101
  • Enhanced electrical testing
  • Robust design
  • MSL2a up to 260°C peak reflow
  • 175°C operating temperature
  • Green product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device

Benefits

  • Very low Ron*A
  • High avalanche capability
  • Small gate charges
  • Fast switching times (turns on/off)
  • High power efficiency
  • Increased design ruggedness
  • Optimized switching performance
  • Small footprint & efficient cooling
  • High quality product design
  • High quality FE&BE production
