GS66508T-TR

END OF LIFE
CoolGaN™ Transistor 650 V ≤ G3 for ultimate efficiency and reliability
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

GS66508T-TR
GS66508T-TR
Data Sheet

Product details

  • Green
    RoHS compliant, Halogen free
  • ID (@25°C) max
    30 A
  • IDpuls (@25°C) max
    60 A
  • Package
    GaNPX
  • QG
    6.1 nC
  • Qualification
    Industrial
  • RDS (on) (typ)
    50 mΩ
  • RDS (on) max
    63 mΩ
  • VDS max
    650 V
OPN
GS66508TTRXUMA1
Product Status discontinued
Infineon Package PG-ULGA-4
Package Name GaNPX (R)
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package PG-ULGA-4
Package Name GaNPX (R)
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

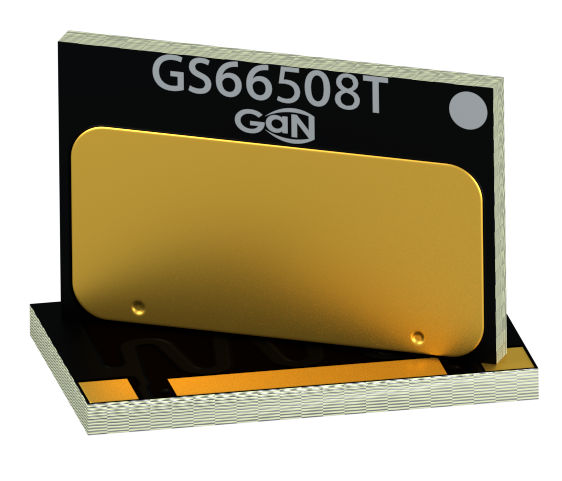

The GS66508T-TR is an enhancement mode GaN-on-Silicon power transistor. The properties of GaN allow for high current, high voltage breakdown and high switching frequency.  The GS66508T-TR is a top-side cooled transistor in a GaNPX® package with very low junction-to-case thermal resistance for high power applications such as ACDC and DCDC converters, motor drives, on-board and off-board EV chargers, and industrial power supplies.

Features

  • E-mode HEMT – normally OFF
  • Ultrafast switching
  • No reverse-recovery charge
  • Capable of reverse conduction
  • Low gate charge, low output charge
  • Superior commutation ruggedness
  • JEDEC qualified (JESD47, JESD22)
  • Top-side cooled
  • Zero reverse recovery loss
  • Fast, controllable fall and rise times
  • RoHS 3(6+4) compliant

Benefits

  • Improves system efficiency
  • Improves power density
  • Reduces system weight
  • Enables higher operating frequency
  • System cost reduction savings
