GATELEAD PB20 G1K1

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

GATELEAD PB20 G1K1
GATELEAD PB20 G1K1
Data Sheet

Product details

Recommended
OPN
GATELEADL500PB20G1KXPSA1
Product Status active and preferred
Infineon Package E-EUPEC-0
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package E-EUPEC-0
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Gate Leads suitable for Power Block Modules in Pressure Contact Technology with a base plate width of 20 mm.

Features

  • Lead material: AWG20 KK
  • ACu = 0,52 mm²
  • (HEW-FEP-single core (19x32))
  • Leads twisted inside the sleeve
  • Sleeve mat.: PTFE AWG6, d = 4,12mm
  • Plug: 2,8 x 0,8
  • Plug DIN 46330-gal.Sn-Bd (crimped)

Applications

Diagrams

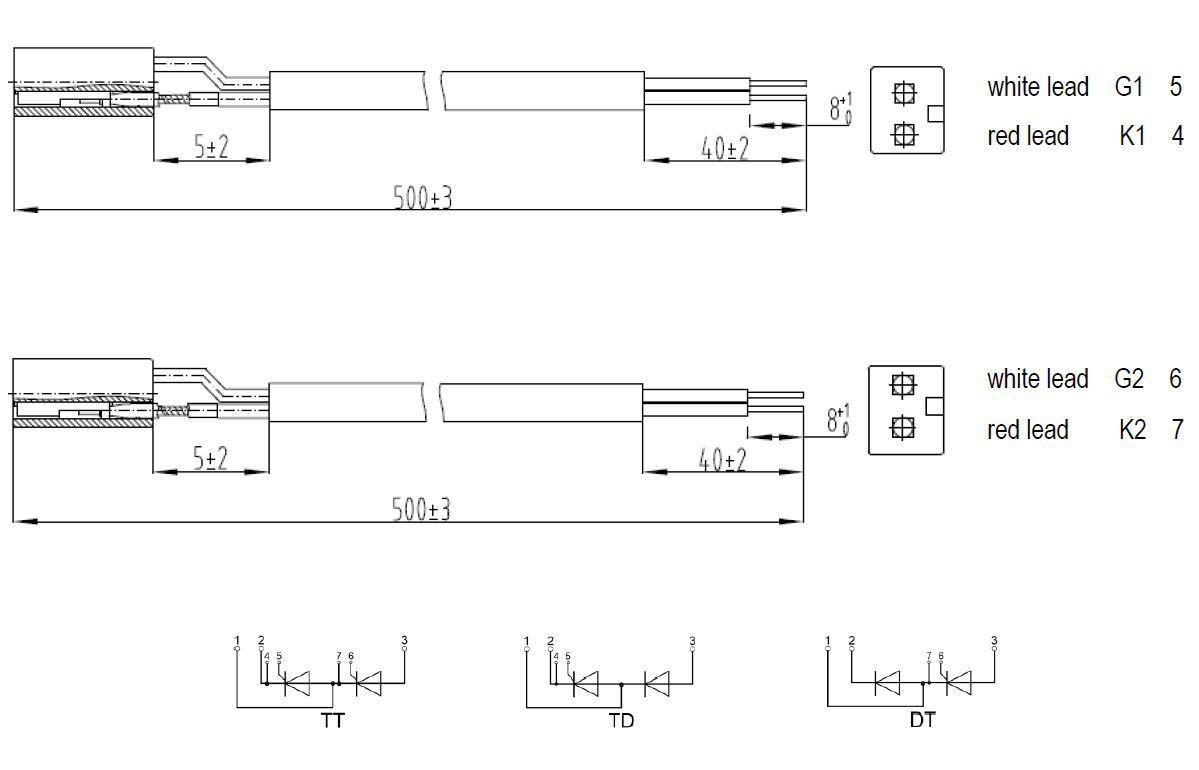

Diagram_Gate-leads-for-PB20
