FZ900R12KE4

1200 V, 900 A single switch IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FZ900R12KE4
FZ900R12KE4
ea.
Data Sheet

Product details

  • Configuration
    Single switch
  • Dimensions (length)
    106.4 mm
  • Dimensions (width)
    61.4 mm
  • Housing
    62 mm
  • IC(nom) / IF(nom)
    900 A
  • IC max
    900 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.9 V
  • Voltage Class max
    1200 V
Recommended
OPN
FZ900R12KE4HOSA1
Product Status active and preferred
Infineon Package AG-62MMES
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-62MMES
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

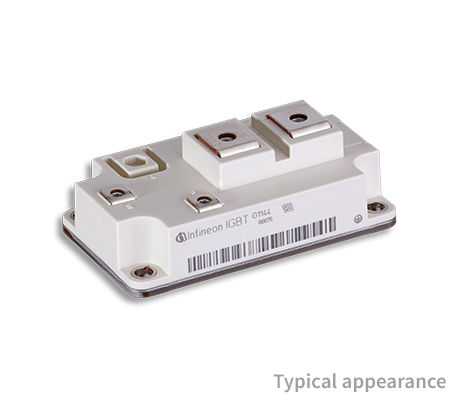

62 mm 1200 V, 900 A single switch IGBT module with TRENCHSTOP™ IGBT4 and Emitter Controlled 4 diode.

Features

  • Low switching losses
  • Unbeatable robustness
  • VCEsatwith positive temp. coeffi.
  • Low VCEsat
  • 4 kV AC 1 min insulation
  • Package with CTI > 400
  • High creepage & clearance distances
  • High power density
  • Isolated base plate
  • Standard housing
