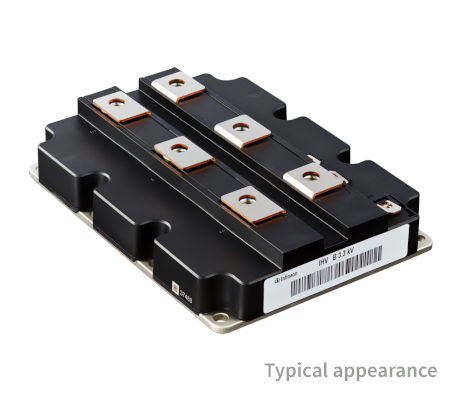

FZ1800R45HL4_S7

4500 V, 1800 A single switch IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FZ1800R45HL4_S7
FZ1800R45HL4_S7
Data Sheet

Product details

  • Configuration
    Single switch
  • Dimensions (length)
    190 mm
  • Dimensions (width)
    140 mm
  • Features
    VGE = 25 V
  • Housing
    IHV B
  • IC(nom) / IF(nom)
    1800 A
  • IC max
    1800 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - L4
  • VCE(sat) (Tvj=25°C typ)
    2.15 V
  • VCES / VRRM
    4500 V
  • VF (Tvj=25°C typ)
    2.6 V
  • Voltage Class max
    4500 V
Recommended
OPN
FZ1800R45HL4S7BPSA1
Product Status active and preferred
Infineon Package AG-IHVB190
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-IHVB190
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
IHV-B 4500 V , 1800 A 190 mm single switch IGBT Module with Trench/Fieldstop IGBT4, Emitter Controlled 4 diode and isolated AlSiC Base Plate - The best solution for your HVDC application. In comparison to the standard type the _S7 type can be driven with VGE=25 V instead of the usual 15 V

Features

  • High DC stability
  • High short-circuit capability
  • Lowest conduction losses
  • Low VCEsat
  • Rectangular non truncated (RB-)SOA
  • Tvj op=150°C
  • AlSiC base plate with AlN substrate
  • for increased Thermal cycling
  • Fire & smoke EN45545 R22, R23 : HL3
  • Package with CTI > 600
  • Gate emitter voltage of 25 V
  • best in class power density

Benefits

  • Standardized housing: 190x140x38 mm
  • 5% lower loss vs non _S7 type
  • Long service life
  • Unbeatable dynamic robustness
  • Low FIT Rate
  • UL recognized
  • grant 1.5 GW @ 320 kV w/o paralling
  • requires 2/3 size vs old solutions
