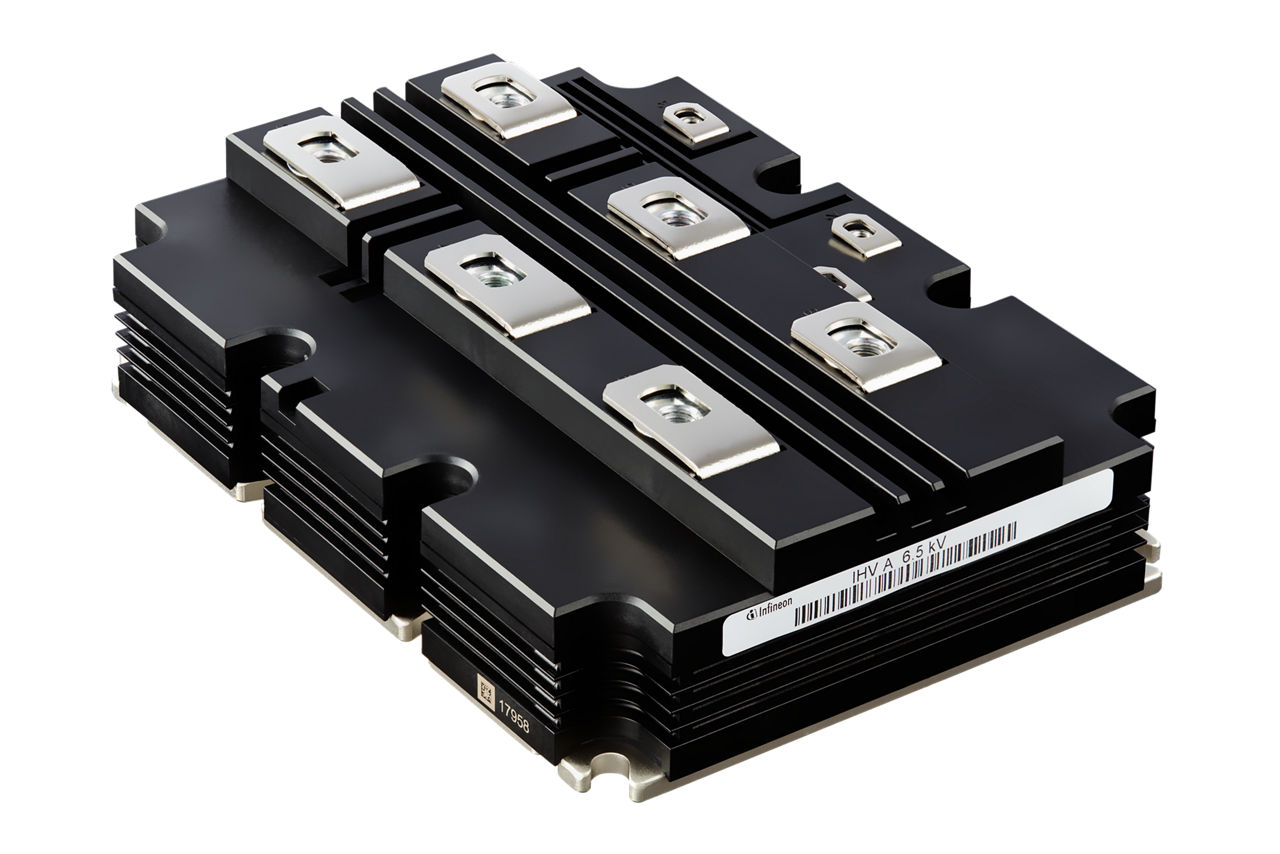

FZ1000R65KE4

6500 V, 1000 A single switch IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FZ1000R65KE4
FZ1000R65KE4
ea.
Data Sheet

Product details

  • Configuration
    Single switch
  • Dimensions (width)
    140 mm
  • Dimensions (length)
    190 mm
  • Features
    10.4kV isolation
  • Housing
    IHV A
  • IC(nom) / IF(nom)
    1000 A
  • IC max
    1000 A
  • Qualification
    Traction, Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    2.85 V
  • VCES / VRRM
    6500 V
  • VF (Tvj=25°C typ)
    2.65 V
  • Voltage Class max
    6500 V
Recommended
OPN
FZ1000R65KE4NPSA1
Product Status active and preferred
Infineon Package A-IHV190
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package A-IHV190
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IHV 6500 V, 1000 A, 190mm single switch IGBT Module with IGBT4 Trench field stop technology - The best solution for your HVDC-VSC, traction and industry applications.

Features

  • High DC stability
  • Low VCEsat
  • Extended storage temperature
  • * down to T(stg) = -55°C
  • Rectangular non truncated (RB-)SOA
  • Package with CTI > 600
  • Package insulation 10.4 kV AC 1min
  • High creepage & clearance distances
  • Increased TC capability
  • Fire & smoke EN45545 R22, R23 : HL3
  • Tvj op=150°C
  • best in class power density

Benefits

  • Standardized housing: 190x140x48 mm
  • Unbeatable dynamic robustness
  • 2xPC = 110% power at same lifetime
  • or 200% lifetime
  • or 8K more safety buffer
  • enables 25% size reduction
  • Low FIT Rate
  • Long service life
