Active and preferred
RoHS Compliant

FS75R12N2T7_B15

1200 V, 75 A sixpack IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS75R12N2T7_B15
FS75R12N2T7_B15
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    107 mm
  • Dimensions (width)
    45 mm
  • Features
    Solder pin
  • Housing
    EconoPACK™ 2
  • IC(nom) / IF(nom)
    75 A
  • IC max
    75 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - T7
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.72 V
  • Voltage Class max
    1200 V
Recommended
OPN
FS75R12N2T7B15BPSA2
Product Status active and preferred
Infineon Package AG-ECONO2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

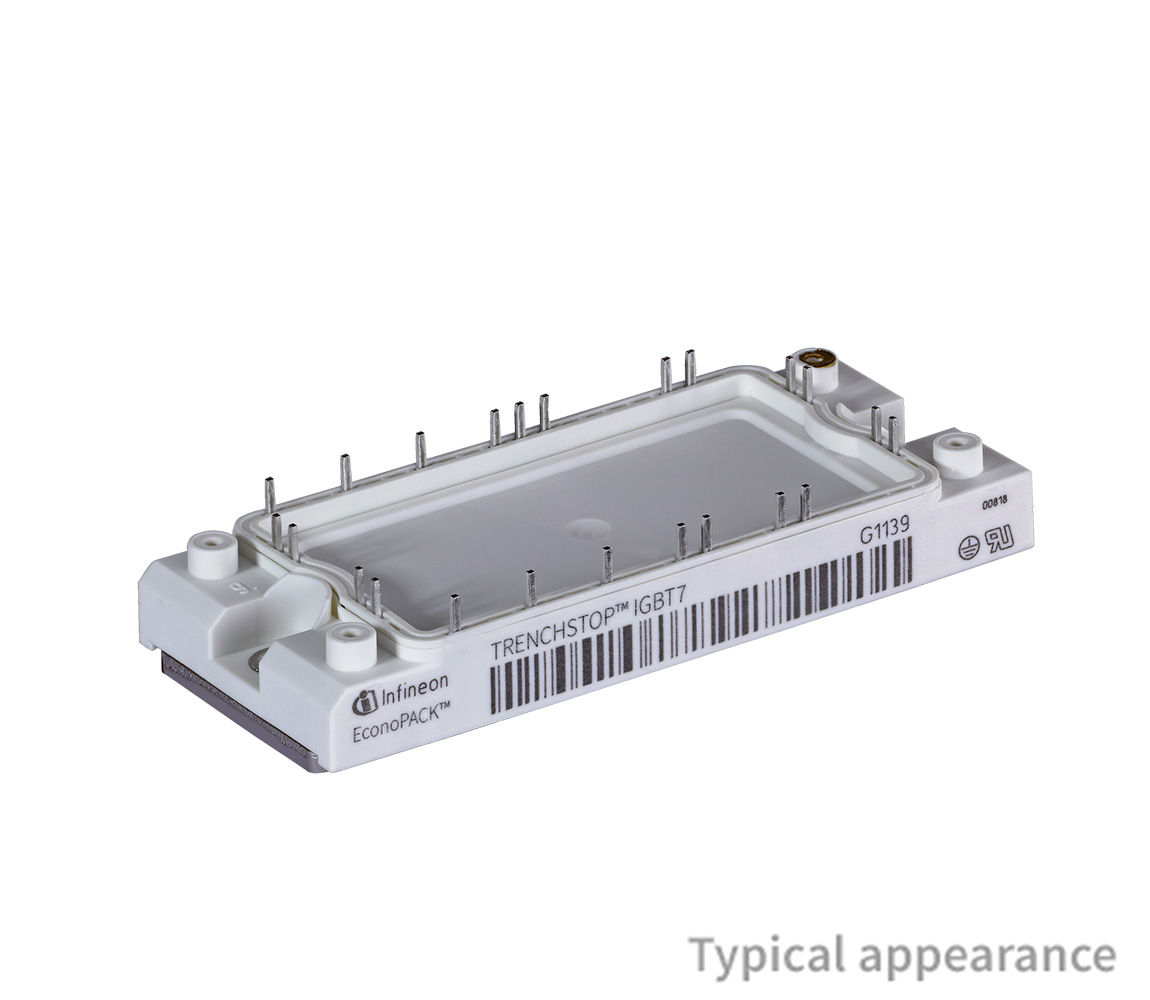

EconoPACK™ 2 1200 V, 75 A sixpack IGBT module with TRENCHSTOP™ IGBT7 , Emitter Controlled 7 diode and NTC (alternative mechnically compatible to an IGBT3 module).

Features

  • TRENCHSTOP™ IGBT7
  • Low VCEsat and Low switching losses
  • Overload operation up to 175°C
  • 2.5 kV AC 1min insulation
  • High reliability and power density
  • Copper base plate
  • Optimized heat spread
  • Solder contact technology
  • RoHS compliant
