FS35R12W1T4

1200 V, 35 A sixpack IGBT module
Data Sheet
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS35R12W1T4
FS35R12W1T4
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    48 mm
  • Dimensions (width)
    33.8 mm
  • Housing
    EasyPACK™ 1B
  • IC(nom) / IF(nom)
    35 A
  • IC max
    35 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.85 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Voltage Class max
    1200 V
Recommended
OPN
FS35R12W1T4BOMA1
Product Status active and preferred
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY1B
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

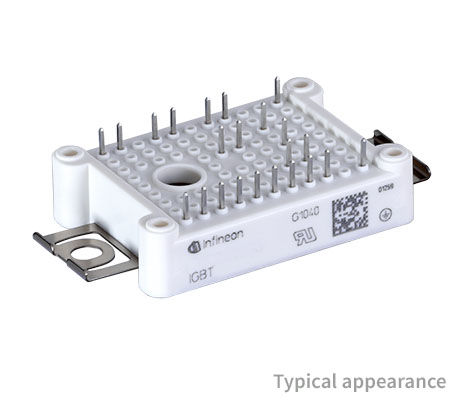

EasyPACK™ 1B 1200 V, 35 A sixpack IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC. Also available with PressFIT contact technology: FS35R12W1T4_B11 . If you would like to increase the power, have a look at the FS35R12W1T7 featuring the latest TRENCHSTOP™ IGBT7 chip technology.

Features

  • Low switching losses
  • VCEsatwith positive temp. coeffici.
  • Low VCEsat
  • Al2O3 substrate
  • Compact design
  • Solder contact technology
  • Rugged mounting
  • Integrated mounting clamps
