Active and preferred
Lead-free

FS28MR12W1M1H_B11

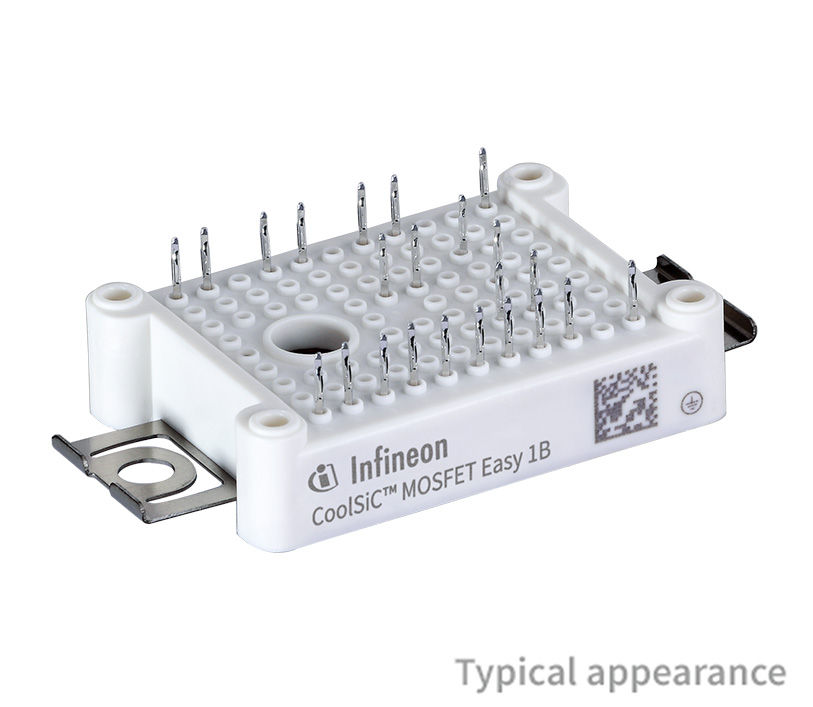

CoolSiC™ MOSFET sixpack module 1200 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS28MR12W1M1H_B11
FS28MR12W1M1H_B11
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    62.8 mm
  • Dimensions (width)
    33.8 mm
  • Features
    PressFIT
  • Housing
    Easy 1B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    26.4 mΩ
Recommended
OPN
FS28MR12W1M1HB11HPSA1
Product Status active and preferred
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY1B
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 1B CoolSiC™ MOSFET sixpack module 1200 V, 28 mOhm with PressFit contact technology.

Features

  • Wide RBSOA
  • Very low stray inductance
  • Enlarged gate drive voltage window
  • PressFIT pins

Benefits

  • Extended maximum gate-source voltage of +23 V and -10 V
  • Tvjop under overload condition with up to 175°C
  • Best cost-performance ration which leads to reduced system costs
  • Enabling high frequency operation and improvement for reduced cooling requirements
