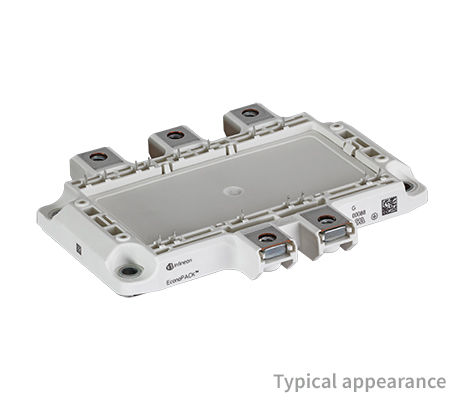

FS200R12PT4P

1200 V, 200 A sixpack IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS200R12PT4P
FS200R12PT4P
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (width)
    70.6 mm
  • Dimensions (length)
    130 mm
  • Features
    PressFIT, TIM
  • Housing
    EconoPACK™ 4
  • IC(nom) / IF(nom)
    200 A
  • IC max
    200 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FS200R12PT4PBOSA1
Product Status active and preferred
Infineon Package AG-ECONO4
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO4
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPACK™ 4 1200 V, 200 A sixpack IGBT module with fast Trench/Fieldstop IGBT4, Emitter Controlled 4 diode, NTC, PressFIT Contact Technology and pre-applied Thermal Interface Material .

Features

  • Extended operation temp. Tvj op
  • Low switching losses
  • Low VCEsat
  • VCEsat with positive temp. coeffic.
  • 2.5 kV AC 1min Insulation
  • High power density
  • Isolated base plate
  • Standard housing
