FS200R12KT4R_B11

1200 V, 200 A sixpack IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS200R12KT4R_B11
FS200R12KT4R_B11
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    122 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    EconoPACK™ 3
  • IC(nom) / IF(nom)
    200 A
  • IC max
    200 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FS200R12KT4RB11BOSA1
Product Status active and preferred
Infineon Package AG-ECONO3B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO3B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

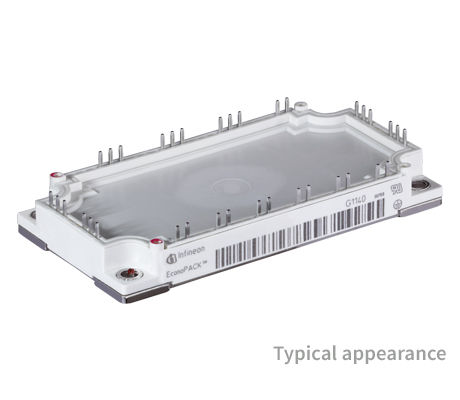

EconoPACK™3 1200 V, 200 A sixpack IGBT module with fast TRENCHSTOP™ IGBT4, NTC and PressFIT Contact Technology. Also available as variation with Soldering connection technology: FS200R12KT4R .

Features

  • Cont. op. power limited to 150 Arms
  • Low VCEsat
  • Tvj op = 150°C
  • Al2O3 substrate
  • Copper base plate
  • Standard housing

Applications

Motor control
