FS200R10W3S7_B11

950 V, 200 A sixpack IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS200R10W3S7_B11
FS200R10W3S7_B11
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    109.9 mm
  • Features
    PressFIT
  • Housing
    EasyPACK™ 3B
  • IC(nom) / IF(nom)
    200 A
  • IC max
    200 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - S7
  • VCE(sat) (Tvj=25°C typ)
    1.69 V
  • VCES / VRRM
    950 V
  • VF (Tvj=25°C typ)
    2.33 V
  • Voltage Class max
    950 V
Recommended
OPN
FS200R10W3S7B11BPSA1
Product Status active and preferred
Infineon Package AG-EASY3B
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-EASY3B
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

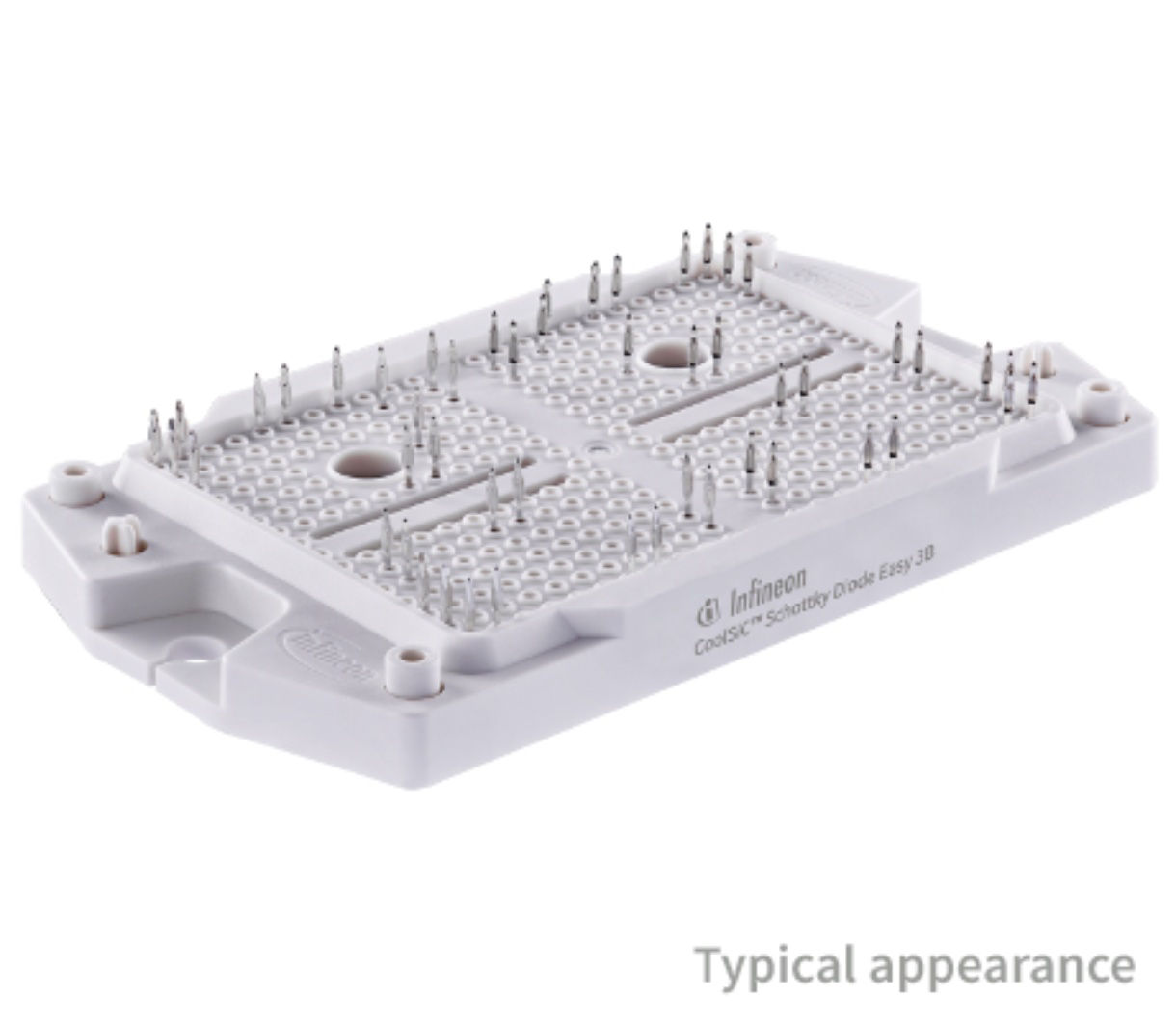

EasyPACK™ 3B 950 V, 200 A sixpack IGBT module with TRENCHSTOP™ IGBT7 , PressFIT mounting technology and NTC.

Features

  • High speed sixpack modules
  • 2 modules for double boost system
  • For 1500 V ESS DC-DC application
  • Low VCEsat
  • TRENCHSTOP™ IGBT7
  • Al2O3 substrate
  • High power & thermal cycling capab.
  • Integrated NTC temperature sensor
  • PressFIT contact technology
