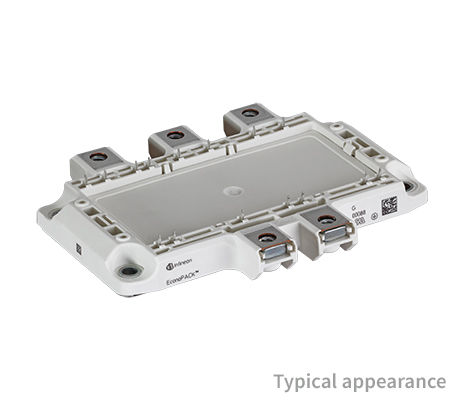

FS150R12PT4

1200 V, 150 A sixpack IGBT module
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS150R12PT4
FS150R12PT4
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    130 mm
  • Dimensions (width)
    70.6 mm
  • Features
    PressFIT
  • Housing
    EconoPACK™ 4
  • IC(nom) / IF(nom)
    150 A
  • IC max
    150 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FS150R12PT4BOSA1
Product Status active and preferred
Infineon Package
AG-ECONO4
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
AG-ECONO4
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPACK™ 4 1200 V, 150 A sixpack IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode, NTC and PressFIT Contact Technology

Features

  • Extended operation temp. Tvj op
  • Low switching losses
  • Low VCEsat
  • VCEsatwith positive temp. coeffi.
  • Isolated base plate; Standard housing

Documents

Documents

Design resources

Partner solutions

Developer community
