Active and preferred
RoHS Compliant

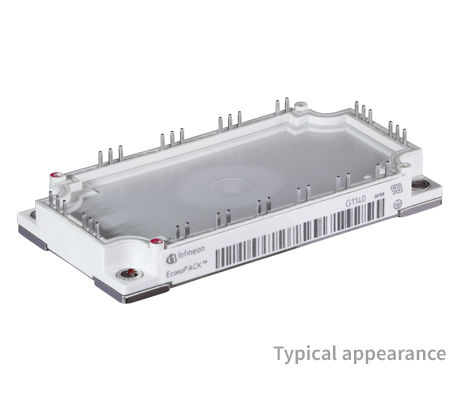

FS100R17N3E4

1700 V, 100 A sixpack IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS100R17N3E4
FS100R17N3E4
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    122 mm
  • Dimensions (width)
    62 mm
  • Housing
    EconoPACK™ 3
  • IC(nom) / IF(nom)
    100 A
  • IC max
    100 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
Recommended
OPN
FS100R17N3E4BOSA1
Product Status active and preferred
Infineon Package AG-ECONO3B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO3B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPACK™3 1700 V, 100 A sixpack IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled Diode and NTC. Also available as variation with PressFIT mounting technology: FS100R17N3E4_B11 .

Features

  • Extended operation temp. Tvj op
  • Low VCEsat
  • VCEsatwith positive temp. coeffi.
  • Integrated NTC temperature sensor
  • Isolated base plate
  • Solder contact technology
  • Standard housing
