FS01MR08A8MA2LBC

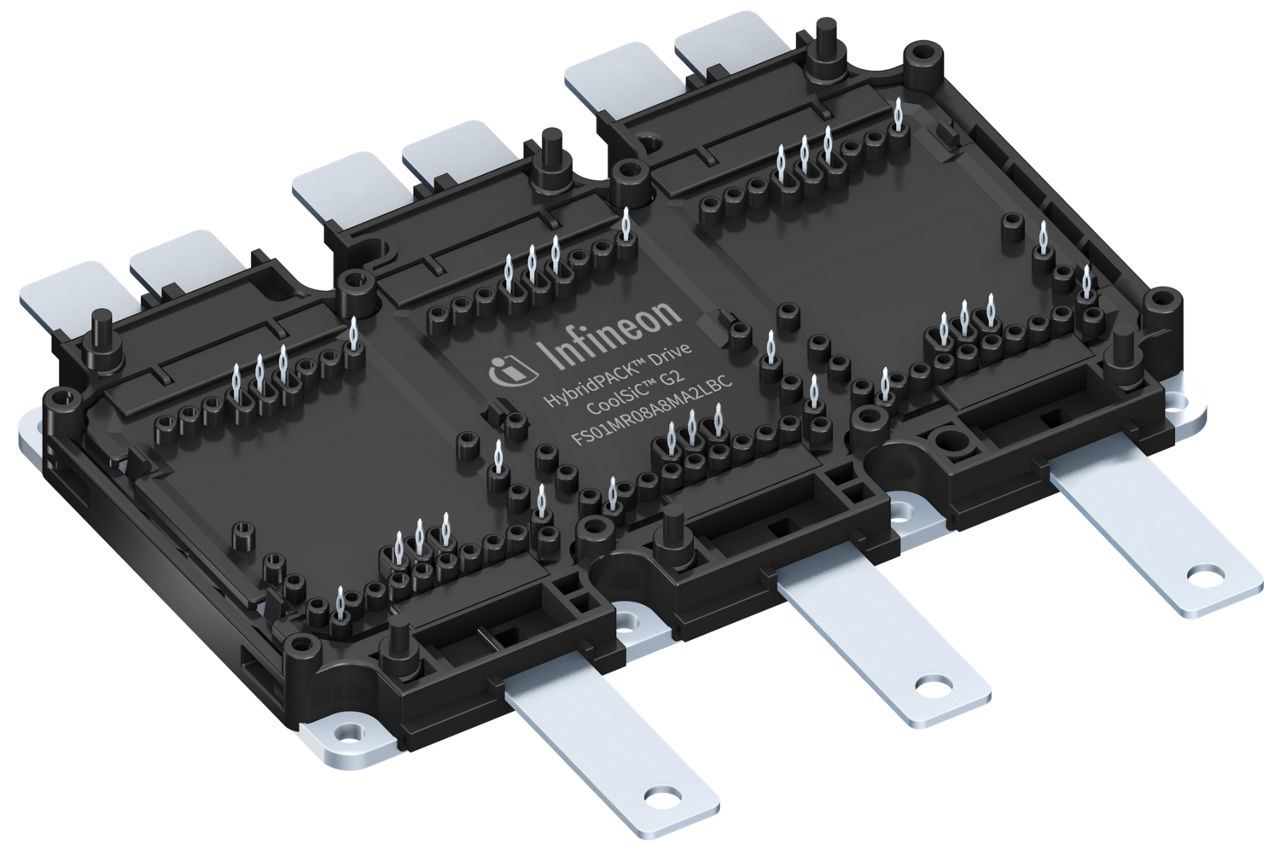

This HybridPACK™ Drive G2 CoolSiC™ G2 module is a highly compact B6-bridge power module (750V/620A) with enhanced package optimized for various inverter power classes.
Data Sheet
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS01MR08A8MA2LBC
FS01MR08A8MA2LBC
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Features
    PinFin Base Plate, Long Tabs
  • Housing
    HybridPACK™ Drive G2
  • Launch year
    2024
  • Package
    AG-HDSICXT-1
  • Planned to be available until at least
    2040
  • Qualification
    Automotive
  • RthJC max
    0.118 K/W
  • Technology
    CoolSiC™ G2
  • VCES (Tvj=25°C typ)
    750 V
  • Voltage Class max
    750 V
Recommended
OPN
FS01MR08A8MA2LBCHPSA1
Product Status active and preferred
Infineon Package AG-HDG2XT-3311
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-HDG2XT-3311
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • New semicond. material - silicon carbide
  • Low RDS(on)
  • Low switching losses
  • Low Qg and Crss
  • 4.2 kV DC 1 second insulation
  • High creepage and clearance distances
  • Compact design
  • High power density
  • Direct-cooled PinFin base plate
  • High-performance Si3N4 ceramic
  • PCB and cooler assembly guidelines
  • Integrated temperature sensing diode

Benefits

  • Higher temperature cycling capability
  • Integrated diode temperature sensors
  • New plastic material
  • Better temperature capability
  • Lower system BOM
  • Lower AC contact resistance
  • Lower tab temperature
  • PressFIT Contact Technology
  • RoHS compliant
  • Completely Pb free
  • Superior reliability
