FP75R12N3T7

1200 V, 75 A PIM IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP75R12N3T7
FP75R12N3T7
ea.
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (width)
    62 mm
  • Dimensions (length)
    122 mm
  • Features
    Solder Pin
  • Housing
    EconoPIM™ 3
  • IC(nom) / IF(nom)
    75 A
  • IC max
    75 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - T7
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.72 V
  • Voltage Class max
    1200 V
Recommended
OPN
FP75R12N3T7BPSA1
Product Status active and preferred
Infineon Package AG-ECONO3B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO3B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

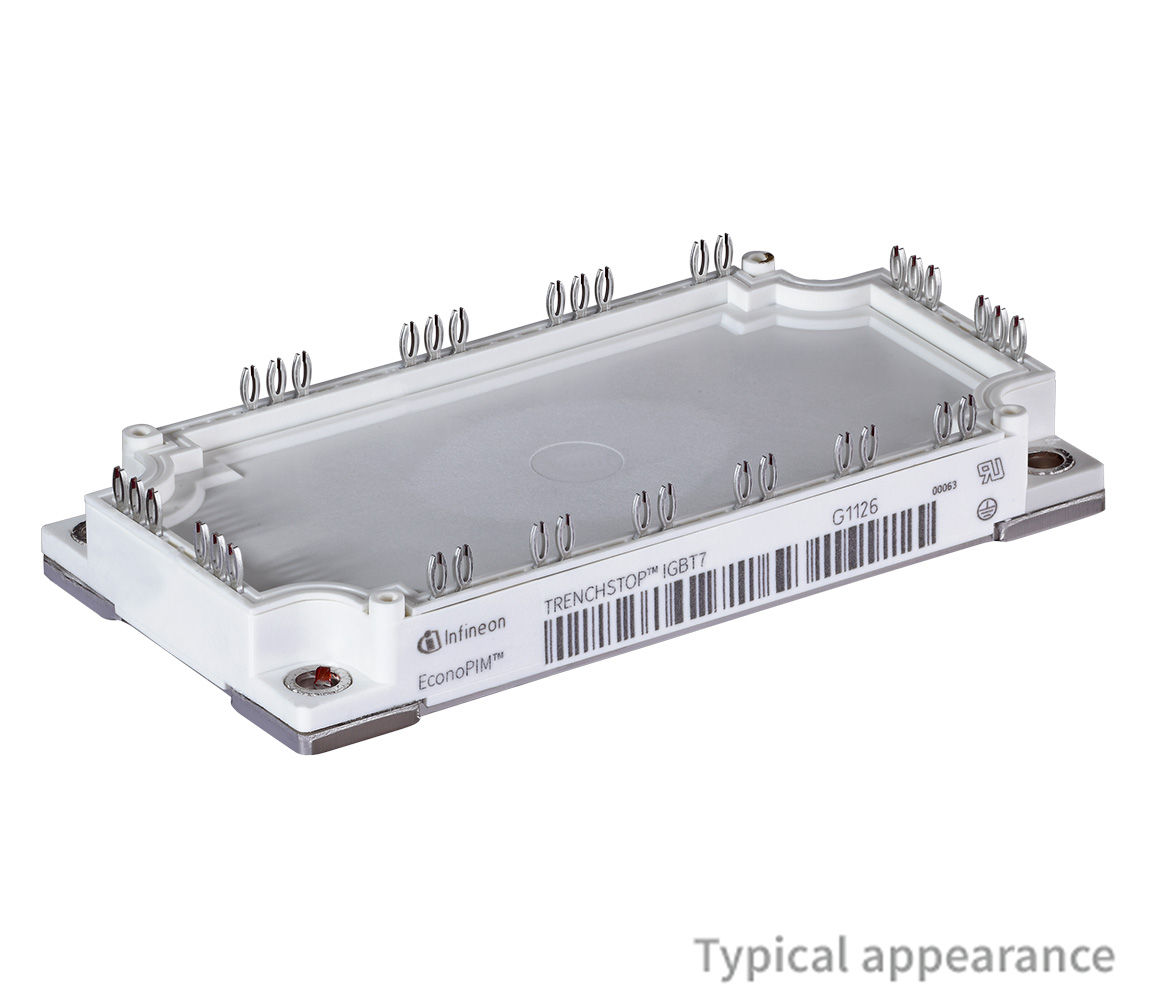

EconoPIM™ 3 1200 V, 75 A three phase PIM IGBT module with TRENCHSTOP™ IGBT7 , Emitter Controlled 7 diode and NTC. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Also available as variation with PressFIT mounting technology and EconoPIM™ 2 package

Features

  • TRENCHSTOP™ IGBT7
  • Low VCEsat and Low switching losses
  • Overload operation up to 175°C
  • 2.5 kV AC 1min insulation
  • High reliability and power density
  • Copper base plate
  • Optimized heat spread
  • Solder contact technology
  • RoHS compliant
