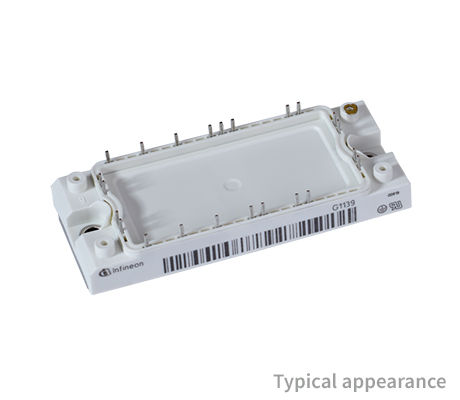

FP75R07N2E4

650 V, 75 A PIM three phase input rectifier IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP75R07N2E4
FP75R07N2E4
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    107 mm
  • Dimensions (width)
    45 mm
  • Features
    Solder pin
  • Housing
    EconoPIM™ 2
  • IC(nom) / IF(nom)
    75 A
  • IC max
    75 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    650 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    650 V
Recommended
OPN
FP75R07N2E4BPSA1
Product Status active and preferred
Infineon Package AG-ECONO2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONO2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPIM™ 2 650 V, 75 A three-phase IGBT module with Trench/Fieldstop IGBT4, Emitter Controlled 4 diode and NTC.

Features

  • Incr. blocking volt. capab. < 650 V
  • High current density
  • Tvj op = 150°C
  • VCEsatwith positive temp. coeffi.
  • Integrated NTC temperature sensor
  • Isolated base plate
  • Copper base plate
  • Solder contact technology
