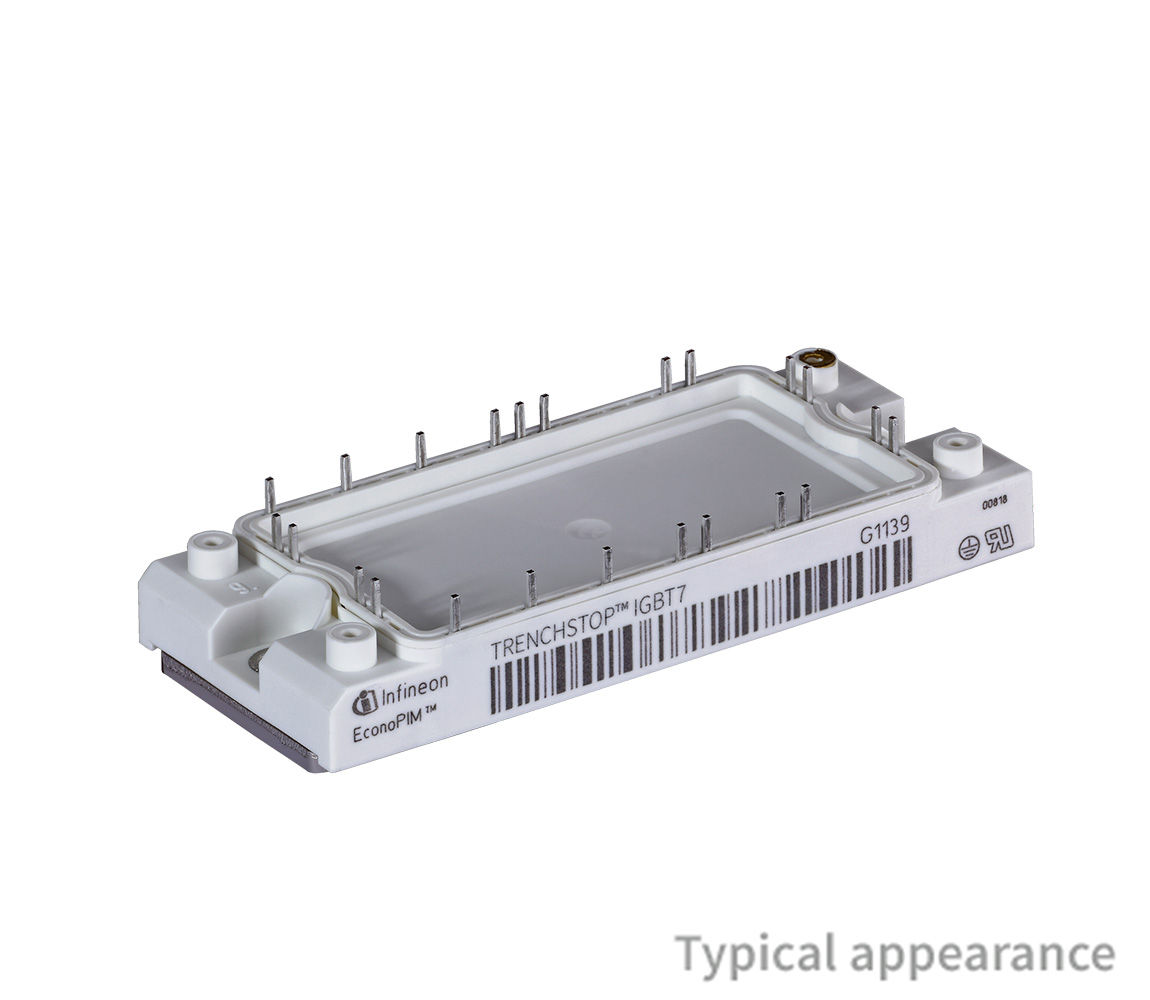

FP50R12N2T7P

1200 V, 50 A PIM IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP50R12N2T7P
FP50R12N2T7P
ea.
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (width)
    45 mm
  • Dimensions (length)
    107 mm
  • Features
    Solder pin, TIM
  • Housing
    EconoPIM™ 2
  • IC(nom) / IF(nom)
    50 A
  • IC max
    50 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - T7
  • VCE(sat) (Tvj=25°C typ)
    1.5 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.72 V
  • Voltage Class max
    1200 V
Recommended
OPN
FP50R12N2T7PBPSA1
Product Status active and preferred
Infineon Package AG-ECONO2B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO2B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPIM™ 2 1200 V, 50 A three phase PIM IGBT module with TRENCHSTOP™ IGBT7 , Emitter Controlled 7 diode, NTC and pre-applied Thermal Interface Material . The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Also available as variation with PressFIT mounting technology.

Features

  • TRENCHSTOP™ IGBT7
  • Low VCEsat and Low switching losses
  • Overload operation up to 175°C
  • 2.5 kV AC 1min insulation
  • High reliability and power density
  • Copper base plate
  • Optimized heat spread
  • Solder contact technology
  • RoHS compliant
  • Pre-applied thermal interface mat.
