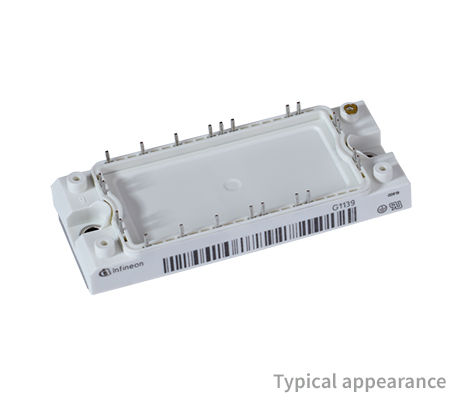

FP40R12KE3

1200 V, 40 A PIM three phase input rectifier IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP40R12KE3
FP40R12KE3
ea.
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    107 mm
  • Dimensions (width)
    45 mm
  • Housing
    EconoPIM™ 2
  • IC(nom) / IF(nom)
    40 A
  • IC max
    40 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.8 V
  • VF (Tvj=25°C typ)
    1.75 V
  • Voltage Class max
    1200 V
Recommended
OPN
FP40R12KE3BPSA1
Product Status active and preferred
Infineon Package AG-ECONO2C
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO2C
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPIM™2 1200 V, 40 A three-phase IGBT module with TRENCHSTOP™ IGBT3, Emitter Controlled 3 diode and NTC.Also available in other variations:as fast switching device: FP40R12KT3 with Econo3 package: FP40R12KE3G as IGBT4: FP35R12KT4_B15

Features

  • Low stray inductance module design
  • High reliability and power density
  • Copper base plate for optimized heat spread
  • Solderable pins
  • Low switching losses
  • High switching frequency
  • RoHS compliant

Applications

Motor control
