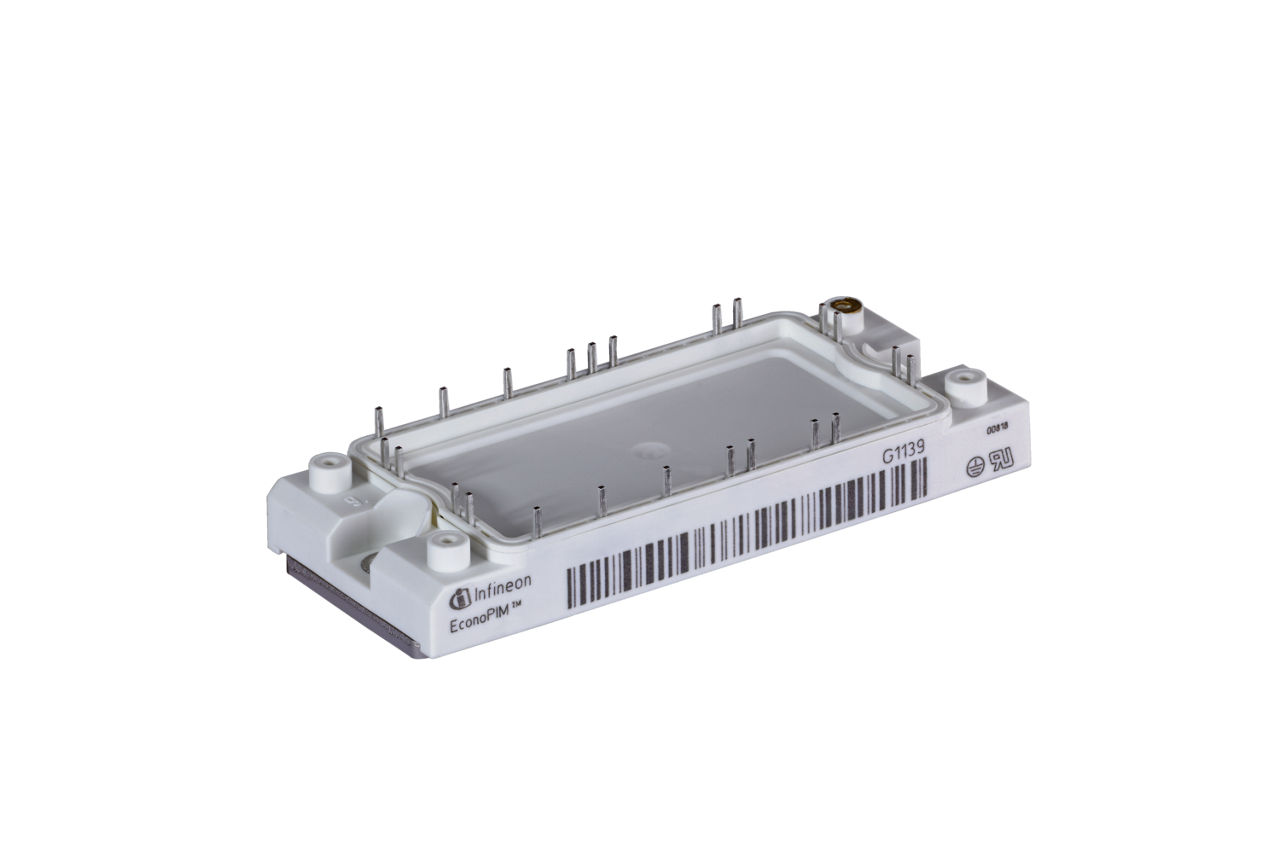

FP35R12N2T7_B67

1200 V, 35 A PIM IGBT with Vienna PFC module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP35R12N2T7_B67
FP35R12N2T7_B67
ea.
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    122 mm
  • Dimensions (width)
    62 mm
  • Housing
    EconoPIM™ 2
  • IC(nom) / IF(nom)
    35 A
  • IC max
    35 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - T7
  • VCE(sat) (Tvj=25°C typ)
    1.74 V
  • VF
    1.72 V
  • Voltage Class max
    1200 V
Recommended
OPN
FP35R12N2T7B67BPSA1
Product Status active and preferred
Infineon Package AG-ECONO2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPIM™ 2 1200 V, 35 A three phase PIM IGBT with Vienna PFC stage module with TRENCHSTOP™ IGBT7, Emitter Controlled 7 diode and NTC. The PIM (Power Integrated Modules) with integration of 3 phase Vienna rectifier PFC enables system cost savings.

Features

  • 3 phase Vienna rectifier PFC
  • TRENCHSTOP™ IGBT7
  • Low VCEsat and Low switching losses
  • Overload operation up to 175°C
  • 2.5 kV AC 1min insulation
  • High reliability and power density
  • Optimized heat spread
  • High power density
  • Solder contact technology
  • RoHS-compliant modules

Benefits

  • Low total harmonic distortion (THD)
  • Meets grid standard IEC 61000-3-2
  • All-in-one solution enables compact design
