Active and preferred
RoHS Compliant

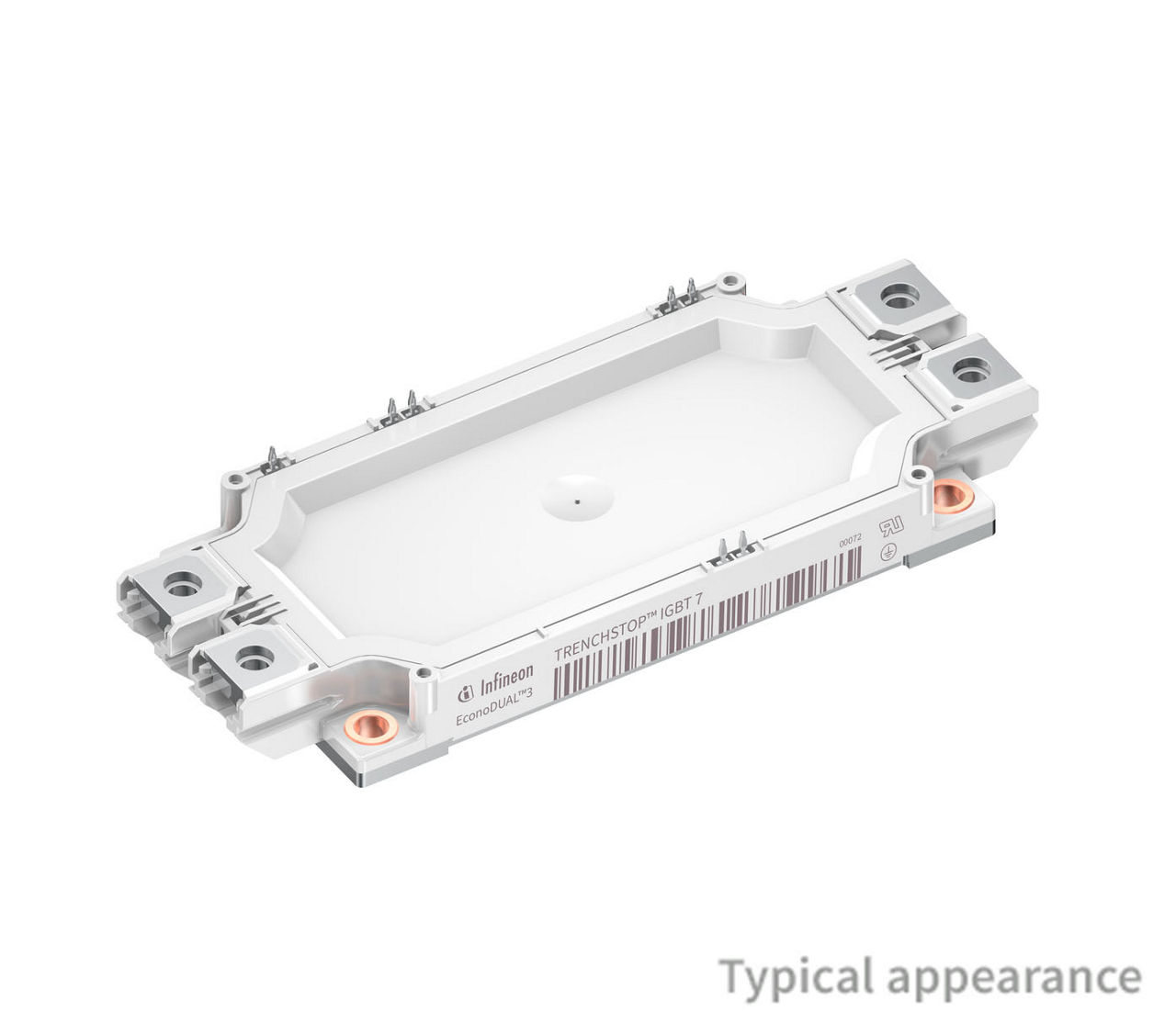

FF900R17ME7_B11

1700 V, 900 A dual IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF900R17ME7_B11
FF900R17ME7_B11
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (width)
    62 mm
  • Dimensions (length)
    152 mm
  • Features
    PressFIT
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    900 A
  • IC max
    900 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - E7
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    2.35 V
  • Voltage Class max
    1700 V
Recommended
OPN
FF900R17ME7B11BPSA1
Product Status active and preferred
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoDUAL™ 3 1700 V, 900 A dual TRENCHSTOP™ IGBT7 module with emitter controlled 7 diode, NTC and PressFIT contact technology. Also available with pre-applied Thermal Interface Material .

Features

  • Highest power density
  • Best-in-class VCE(sat)
  • Tvj op = 175°C overload
  • Optimized switching losses
  • Enhanced controllability of dv/dt
  • Improved diode softness and Erec
  • Enhanced comic ray robustness
  • Improved terminals
  • PressFIT control pins
  • Integrated NTC temperature sensor
  • Isolated base plate
  • Molded terminals
