FF750R17ME7D_B11

1700 V, 750 A dual IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF750R17ME7D_B11
FF750R17ME7D_B11
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (width)
    62 mm
  • Dimensions (length)
    152 mm
  • Features
    Enlarged Diode, PressFIT
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    750 A
  • IC max
    750 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - E7
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    2.35 V
  • Voltage Class max
    1700 V
Recommended
OPN
FF750R17ME7DB11BPSA1
Product Status active and preferred
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

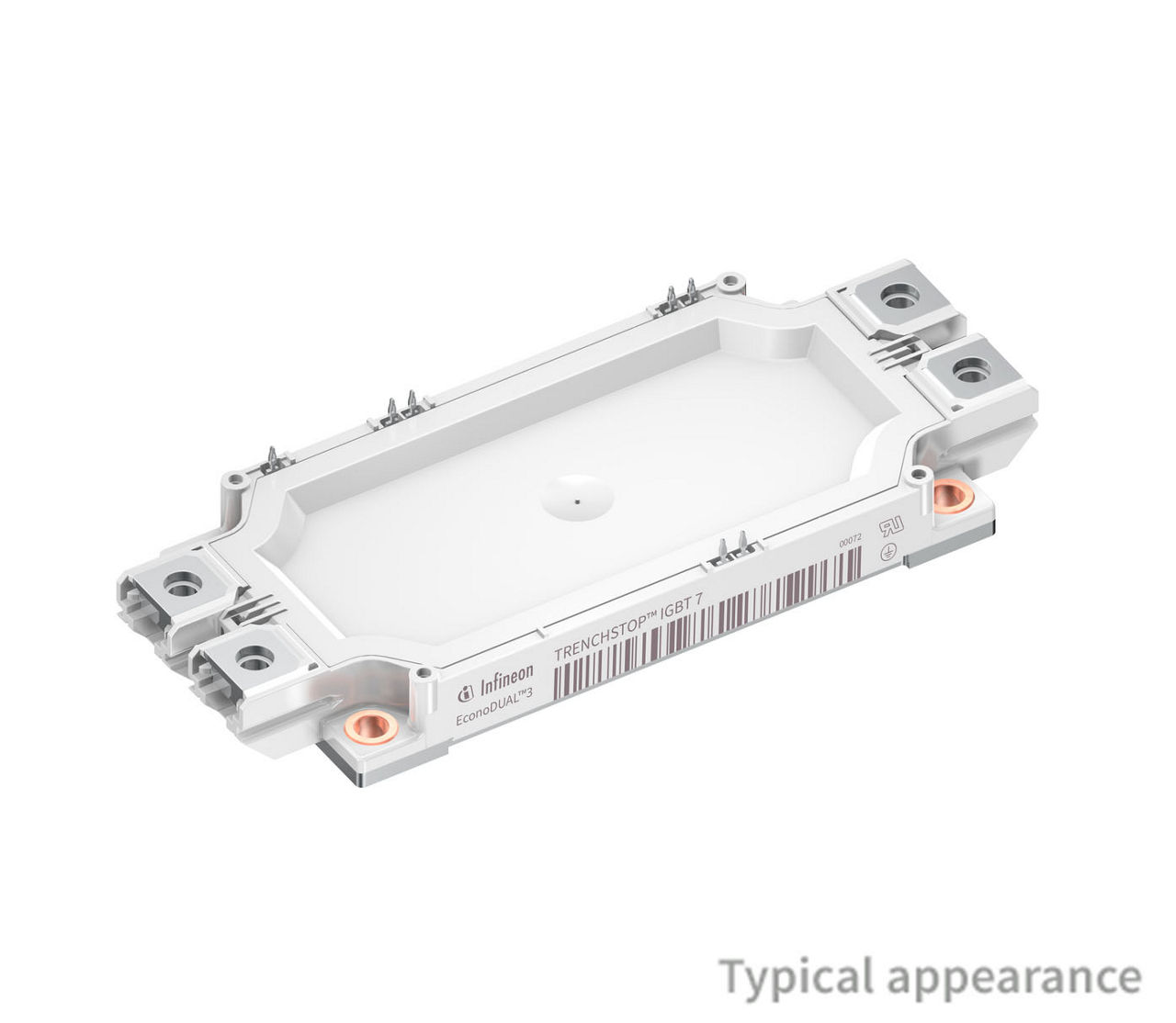

EconoDUAL™ 3 1700 V, 750 A dual TRENCHSTOP™ IGBT7 module with enlarged emitter controlled 7 diode, NTC and PressFIT contact technology.

Features

  • Low VCEsat
  • Enlarged diode
  • Reduced VF and RthJC of the diode
  • Tvj op = 175°C overload
  • Optimized switching losses
  • Enhanced controllability of dv/dt
  • Improved diode softness and Erec
  • Enhanced comic ray robustness
  • Improved terminals
  • PressFIT control pins
  • Integrated NTC temperature sensor
  • Isolated base plate
