Active and preferred
RoHS Compliant

FF600R12ME4W_B73

1200 V, 600 A dual IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF600R12ME4W_B73
FF600R12ME4W_B73
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (length)
    152 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT, Wave structure on the base plate
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    600 A
  • IC max
    600 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VCES
    1200 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF600R12ME4WB73BPSA1
Product Status active and preferred
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

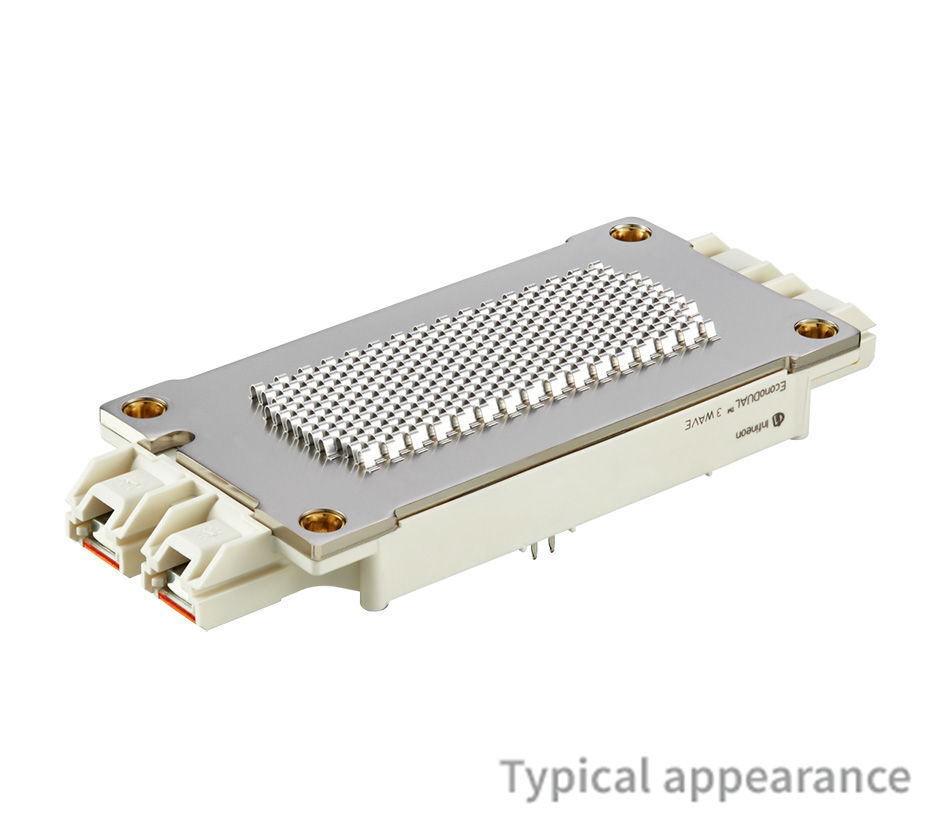

EconoDUAL™ 3 1200 V, 600 A dual IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled Diode, NTC, PressFIT contact technology and wave structure on the base plate.

Features

  • Wave structure on the baseplate
  • Low VCEsat
  • Tvj op = 150°C
  • VCEsatwith positive temp. coeffici.
  • High power density
