Active and preferred
RoHS Compliant

FF4MR12W2M1H_B11

CoolSiC™ MOSFET half-bridge module 1200 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF4MR12W2M1H_B11
FF4MR12W2M1H_B11
ea.
Data Sheet

Product details

  • Applications
    ESS, EV Charger, Solar, UPS
  • Configuration
    Half-bridge
  • Dimensions (width)
    48 mm
  • Dimensions (length)
    62.8 mm
  • Features
    PressFIT
  • Housing
    Easy 2B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    4 mΩ
Recommended
OPN
FF4MR12W2M1HB11BPSA1
Product Status active and preferred
Infineon Package AG-EASY2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

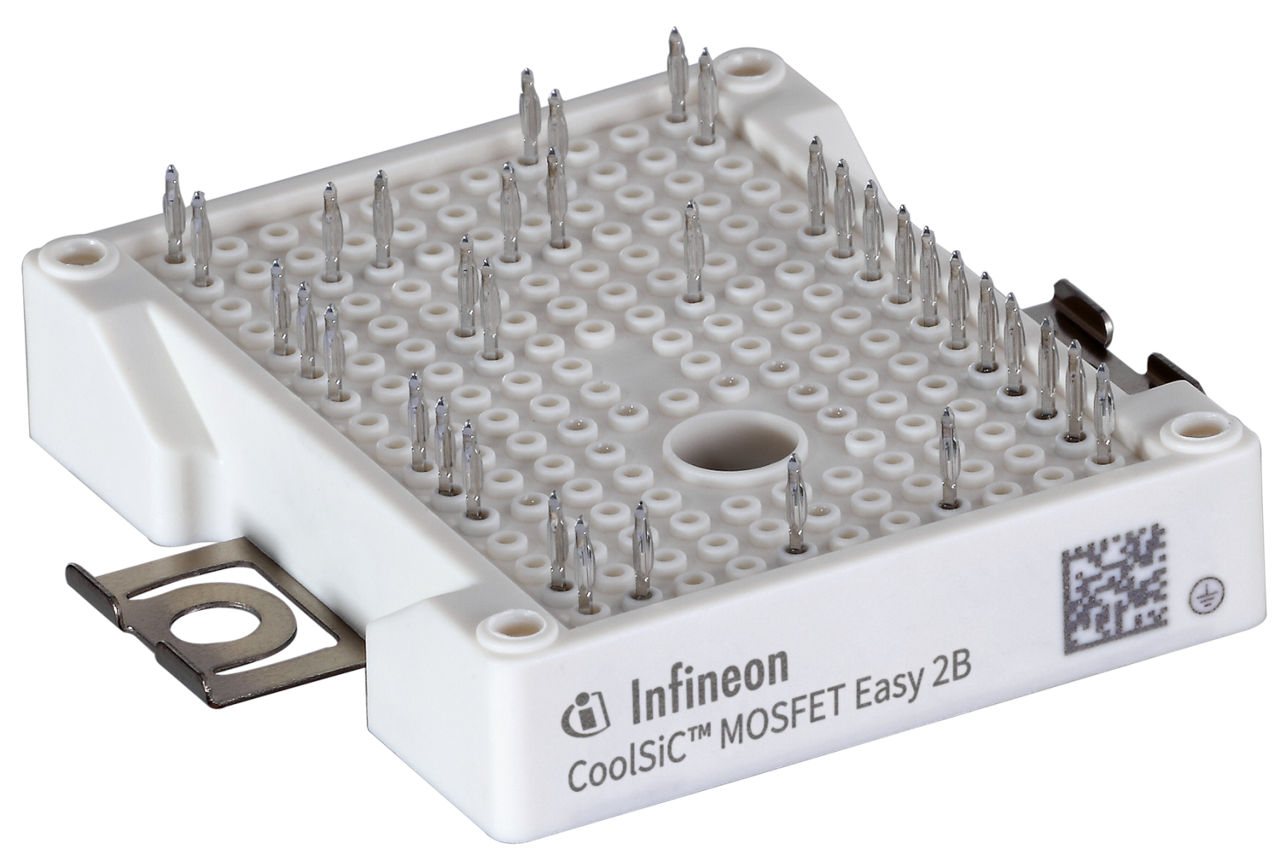

EasyDUAL™ 2B CoolSiC™ MOSFET half-bridge module 1200 V, 4 mΩ G1 with integrated NTC temperature sensor and PressFIT Contact Technology.

Features

  • Best-in-class packages with 12mm height
  • Leading edge WBG material
  • Very low module stray inductance
  • Enhanced CoolSiC™ MOSFET Gen 1
  • Enlarged gate drive voltage window
  • Voltage window from 15 to 18 & 0 to -5 V
  • Extended maximum gate-source voltages
  • Gate-source voltages of +23 V and -10 V
  • Tvjop: Overload condition up to 175°C
  • Integrated NTC temperature sensor

Benefits

  • Outstanding module efficiency
  • System cost advantages
  • System efficiency improvement
  • Reduced cooling requirements
  • Enabling higher frequency
  • Increase of power density
