Active and preferred
RoHS Compliant

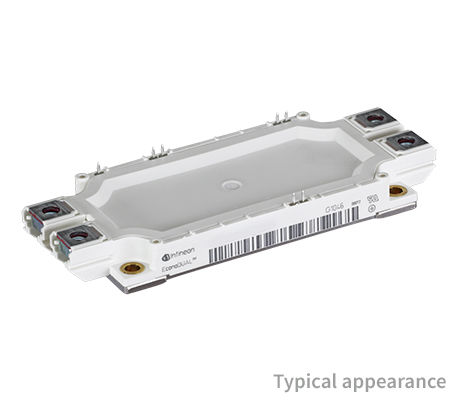

FF450R07ME4_B11

650 V, 450 A dual IGBT module
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF450R07ME4_B11
FF450R07ME4_B11
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (length)
    152 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    450 A
  • IC max
    450 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    650 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    650 V
Recommended
OPN
FF450R07ME4B11BPSA1
Product Status active and preferred
Infineon Package
AG-ECONOD
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
AG-ECONOD
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoDUAL™ 3 650 V, 450 A dual IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled diode, NTC and PressFIT Contact Technology.

Features

  • Incr. blocking volt. capab. < 650 V
  • Increased DC link voltage
  • High short circuit capability
  • Self limiting short circuit current
  • High current density
  • Tvj op = 150°C
  • High surge current capability
  • High power density
  • Integrated NTC temperature sensor
  • Isolated Copper base plate
  • Rugged selfacting PressFIT assembly
  • Standard housing
