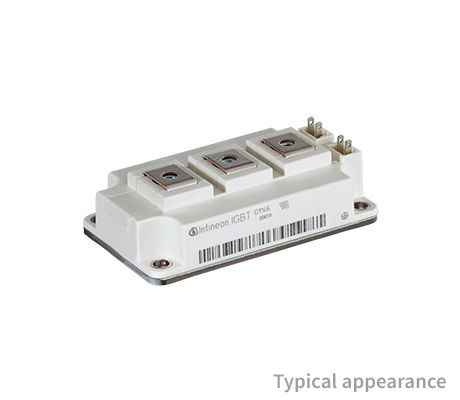

FF400R12KT3P_E

1200 V, 400 A common emitter IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF400R12KT3P_E
FF400R12KT3P_E
Data Sheet

Product details

  • Configuration
    Common Emitter
  • Dimensions (width)
    61.4 mm
  • Dimensions (length)
    106.4 mm
  • Features
    TIM, Phase leg
  • Housing
    62 mm
  • IC(nom) / IF(nom)
    400 A
  • IC max
    400 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - T3
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Voltage Class max
    1200 V
OPN
FF400R12KT3PEHOSA1
Product Status not for new design
Infineon Package AG-62MMHB
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package AG-62MMHB
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The half-bridge 62 mm 1200 V, 400 A Common Emitter IGBT module . This IGBT module is equipped with a fast TRENCHSTOP™ IGBT3, Emitter Controlled diode and pre-applied Thermal Interface Material . The 3-level phase leg configurations are possible in combination with a second 62 mm half-bridge module (e.g. FF400R12KT3 ).

Features

  • Operating temperature up to 150 °C
  • UL/CSA certif. with UL1557 E83336
  • Op. temp. up to 125°C (max 150°C)
  • Optimized switching characteristic
  • Higher current capability
  • RoHS compliant
