Active and preferred
RoHS Compliant
Lead-free

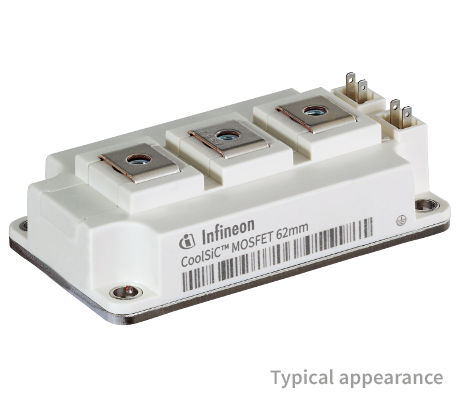

FF3MR20KM1H_S

CoolSiC™ MOSFET half bridge module 2000 V
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF3MR20KM1H_S
FF3MR20KM1H_S
Data Sheet

Product details

  • Applications
    SSCB, EV Charger, Solar, ESS, UPS
  • Configuration
    Common Source
  • Dimensions (width)
    61.4 mm
  • Dimensions (length)
    106.4 mm
  • Housing
    62 mm
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    2.6 mΩ
Recommended
OPN
FF3MR20KM1HSHPSA1
Product Status active and preferred
Infineon Package AG-62MMHB
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-62MMHB
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • High current density
  • Low switching losses
  • Superior gate oxide reliability
  • Robust integrated body diode
  • High cosmic ray robustness
  • High speed switching module
  • Symmetrical module design
  • Standard construction technique

Benefits

  • Minimizes cooling efforts
  • Reduction in volume and size
  • Reduced system costs
  • Improved chip performance
  • For solid state curcuit breaker designs
