not for new design
RoHS Compliant
Lead-free

FF300R12KT3_E

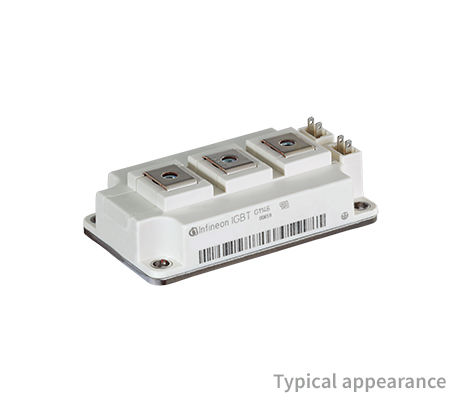

1200 V, 300 A common emitter IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF300R12KT3_E
FF300R12KT3_E
Data Sheet

Product details

  • Configuration
    Common Emitter
  • Dimensions (length)
    106.4 mm
  • Dimensions (width)
    61.4 mm
  • Features
    Phase leg
  • Housing
    62 mm
  • IC(nom) / IF(nom)
    300 A
  • IC max
    300 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - T3
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Voltage Class max
    1200 V
OPN
FF300R12KT3EHOSA1
Product Status not for new design
Infineon Package AG-62MMHB
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package AG-62MMHB
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The half-bridge 62 mm 1200 V, 300 A Common Emitter IGBT modules is the right choice for your design. This IGBT module is equipped with a fast TRENCHSTOP™ IGBT3 and Emitter Controlled diode. The 3-level phase leg configurations are possible in combination with a second 62 mm half-bridge module (e.g. FF300R12KT3 ).This product is also available with Thermal Interface Material pre-applied: FF300R12KT3P_E

Features

  • For frequ. control. inverter drives
  • UL/CSA certif. with UL1557 E83336
  • Tvj op up to 125 °C (max 150 °C)
  • Optimized switching characteristic
  • Package w/ higher current capabili.
  • RoHS compliant

Applications
