FF2400R12IP7P

1200 V, 2400 A dual IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF2400R12IP7P
FF2400R12IP7P
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (length)
    250 mm
  • Dimensions (width)
    89 mm
  • Features
    TIM
  • Housing
    PrimePACK™ 3+
  • IC(nom) / IF(nom)
    2400 A
  • IC max
    2400 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - P7
  • VCE(sat) (Tvj=25°C typ)
    1.27 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF2400R12IP7PBPSA1
Product Status active and preferred
Infineon Package AG-PRIME3+
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-PRIME3+
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

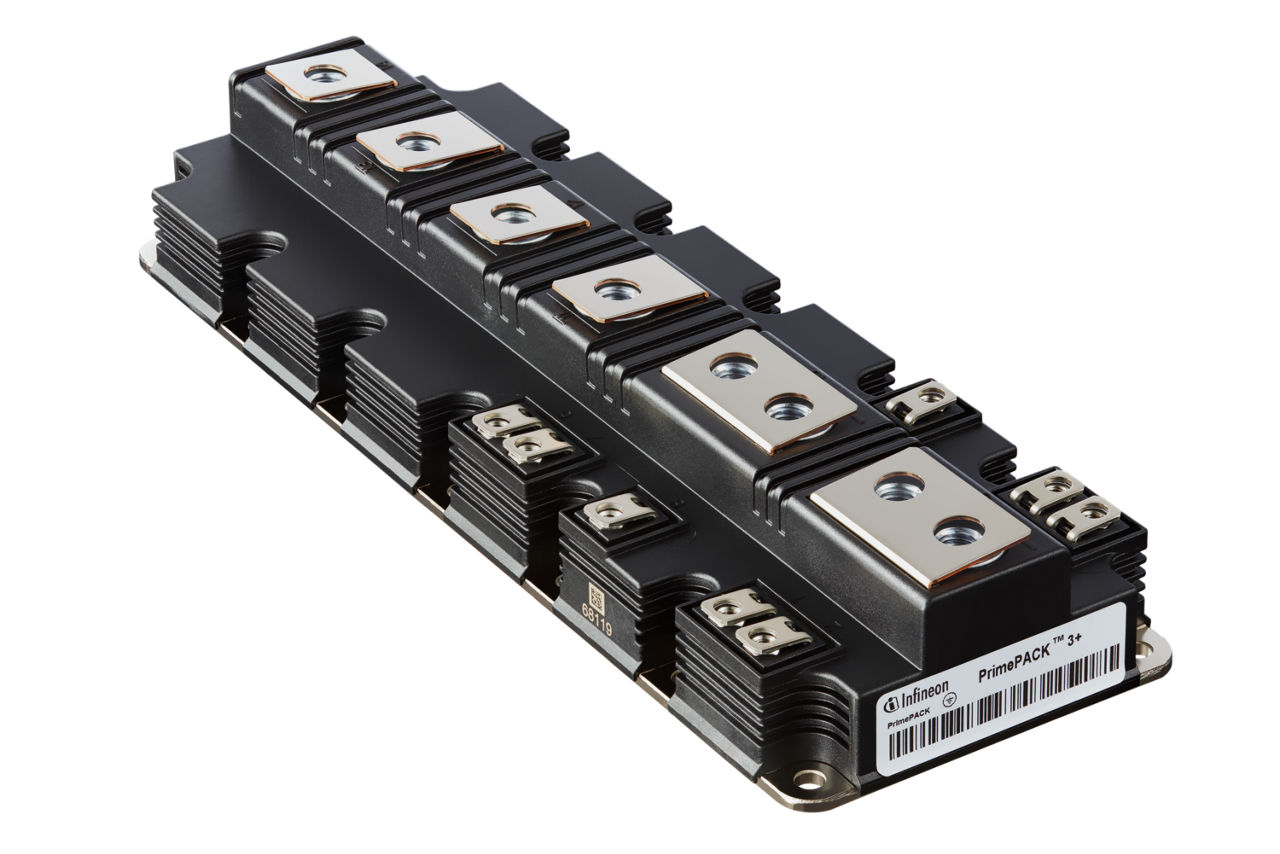

PrimePACK™ 3+ 1200 V, 2400 A dual IGBT module with TRENCHSTOP™ IGBT7, Emitter Controlled 7 diode and NTC with pre-applied Thermal Interface Material.

Features

  • Highest power density
  • Best-in-class VCEsat
  • Tvjop= 175°C for overload
  • Package with CTI > 400
  • High creepage and clearance distance
  • Integrated NTC temperature sensor

Benefits

  • Increase in power density
  • Less cooling effort for same output power
  • High power density enables frame jump
  • Avoidance of paralleling of IGBT modules
  • Standardized Housing

Documents

Documents

Design resources

Partner solutions

Developer community
