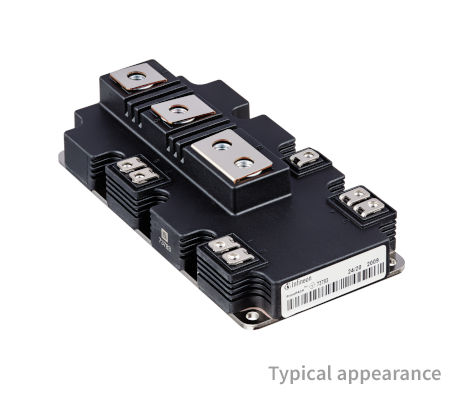

FF1200R12IE5P

1200 V, 1200 A dual IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1200R12IE5P
FF1200R12IE5P
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (width)
    89 mm
  • Dimensions (length)
    172 mm
  • Features
    .XT Technology, TIM
  • Housing
    PrimePACK™ 2
  • IC(nom) / IF(nom)
    1200 A
  • IC max
    1200 A
  • Qualification
    Industrial
  • Technology
    IGBT5 - E5
  • VCE(sat) (Tvj=25°C typ)
    1.9 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF1200R12IE5PBPSA1
Product Status active and preferred
Infineon Package AG-PRIME2
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-PRIME2
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
PrimePACK™ 2 1200 V, 1200 A dual IGBT module with TRENCHSTOP™ IGBT5 and .XT fast switching interconnection technology, Emitter Controlled 5 diode, NTC and pre-applied Thermal Interface Material .

Features

  • Extended op. Temp.(Tvj op = 175°C)
  • Increased output current
  • Copper Bonds
  • Sintering of chips
  • Total losses reduced by up to 20%
  • Package with CTI > 400
  • Pre-applied thermal interface mat.
