Active and preferred
RoHS Compliant

FF11MR12W2M1HP_B11

CoolSiC™ MOSFET dual module 1200 V
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF11MR12W2M1HP_B11
FF11MR12W2M1HP_B11
ea.
Data Sheet

Product details

  • Applications
    ESS, EV Charger, UPS, Solar
  • Configuration
    Half-bridge
  • Dimensions (length)
    62.8 mm
  • Dimensions (width)
    48 mm
  • Features
    PressFIT, TIM
  • Housing
    Easy 2B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    10.8 mΩ
Recommended
OPN
FF11MR12W2M1HPB11BPSA1
Product Status active and preferred
Infineon Package
AG-EASY2B
Package Name N/A
Packing Size 18
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
AG-EASY2B
Package Name -
Packing Size 18
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

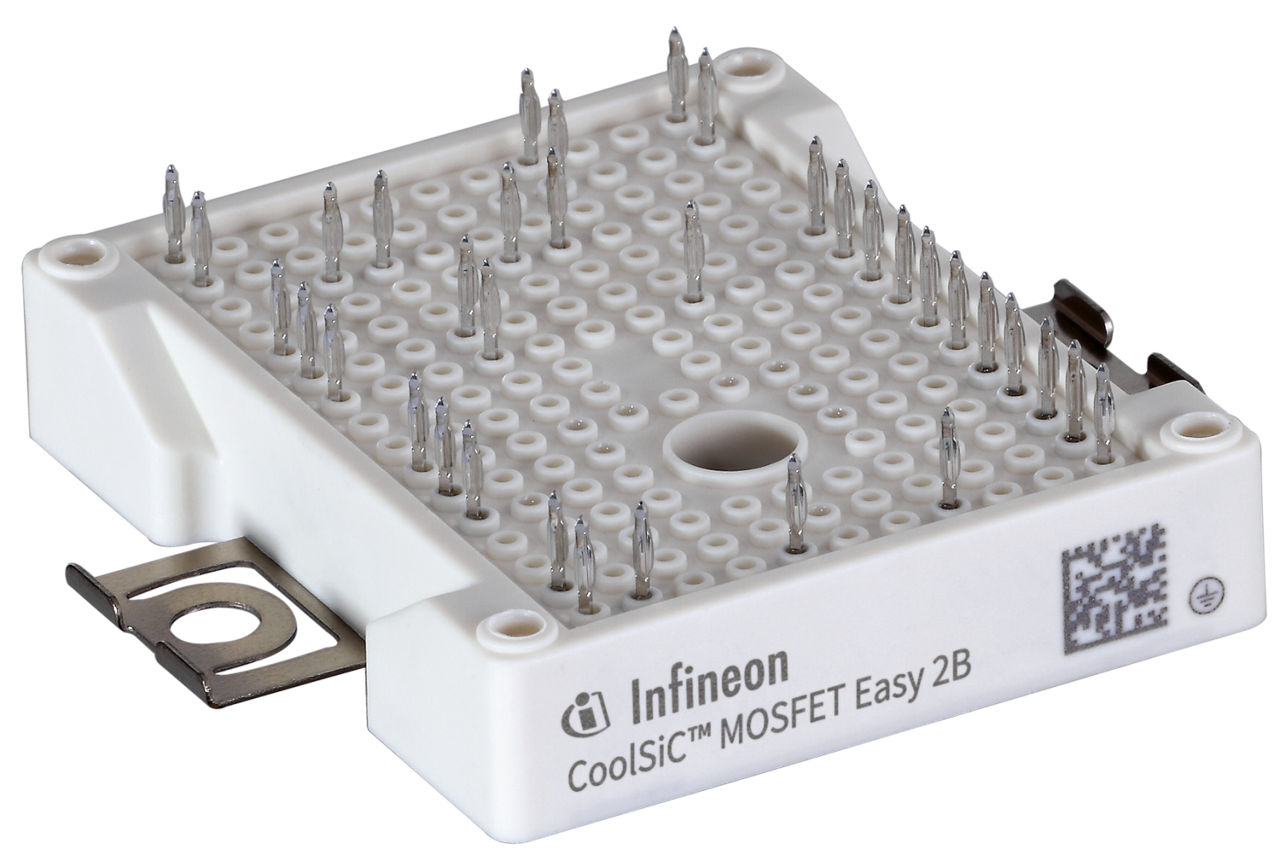

EasyDUAL™ 2B CoolSiC™ MOSFET half-bridge module 1200 V, 11 mΩ G1 with integrated NTC temperature sensor, PressFIT contact technology and pre-applied thermal interface material (TIM).

Features

  • Best-in-class packages with 12 mm height
  • Leading edge WBG material
  • Very low module stray inductance
  • Enhanced CoolSiC™ MOSFET Gen 1
  • Enlarged  gate drive voltage window
  • Gate-source voltages of +23 V and -10 V
  • Tvjop under overload condition up to 175°C
  • PressFIT pins
  • Integrated NTC temperature sensor

Benefits

  • Outstanding module efficiency
  • System cost advantages
  • System efficiency improvement
  • Reduced cooling requirements
  • Enabling higher frequency
  • Increase of power density
