not for new design

FD800R17KE3_B2

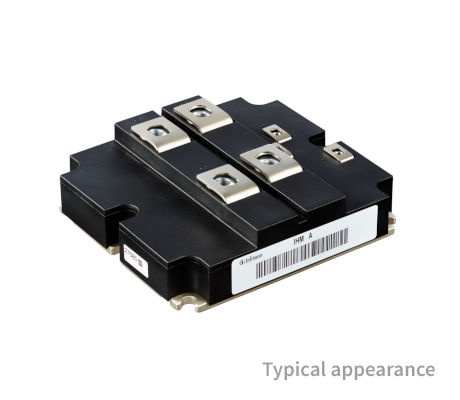

1700 V, 800 A chopper IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FD800R17KE3_B2
FD800R17KE3_B2
Data Sheet

Product details

  • Configuration
    Chopper
  • Dimensions (length)
    130 mm
  • Dimensions (width)
    140 mm
  • Features
    Enlarged Diode
  • Housing
    IHM
  • IC(nom) / IF(nom)
    800 A
  • IC max
    800 A
  • Qualification
    Industrial, Traction
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    2 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    1700 V
OPN
FD800R17KE3B2NOSA1
Product Status not for new design
Infineon Package A-IHM130
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status not for new design
Infineon Package A-IHM130
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
1700V IHM 130mm chopper IGBT Module with IGBT3, enlarged diode and AlSiC base-plate - The best solution for your traction and industry applications

Features

  • Enlarged diode for regen. operation
  • High reliability
  • Robust module construction

Applications
