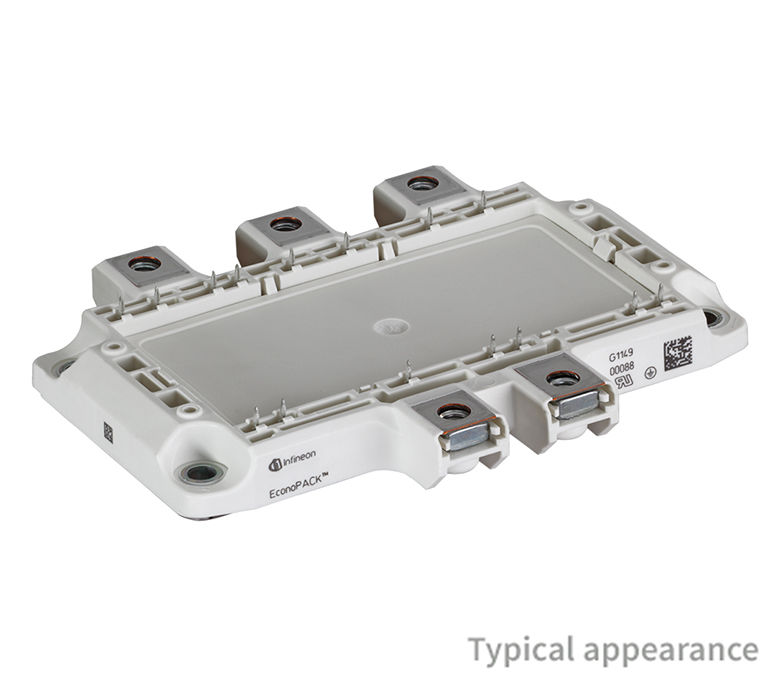

FD300R07PE4_B6

650 V, 300 A chopper IGBT module
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FD300R07PE4_B6
FD300R07PE4_B6
Data Sheet

Product details

  • Configuration
    Chopper
  • Dimensions (length)
    130 mm
  • Dimensions (width)
    70.6 mm
  • Features
    Solder pin
  • Housing
    EconoPACK™ 4
  • IC(nom) / IF(nom)
    300 A
  • IC max
    300 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    650 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    650 V
Recommended
OPN
FD300R07PE4B6BOSA1
Product Status active and preferred
Infineon Package
AG-ECONO4
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
AG-ECONO4
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPACK™ 4 650 V three phase chopper IGBT module with Trench/Fieldstop IGBT4, Emitter Controlled 4 diode and NTC

Features

  • Incr. blocking volt. capab. < 650 V
  • Extended operation temp. Tvj op
  • Tvj op = 150°C
  • VCEsatwith positive temp. coeffici.
  • 4 kV AC 1min insulation
  • High mechanical robustness
  • Integrated NTC temperature sensor
  • Isolated base plate
  • Standard housing
