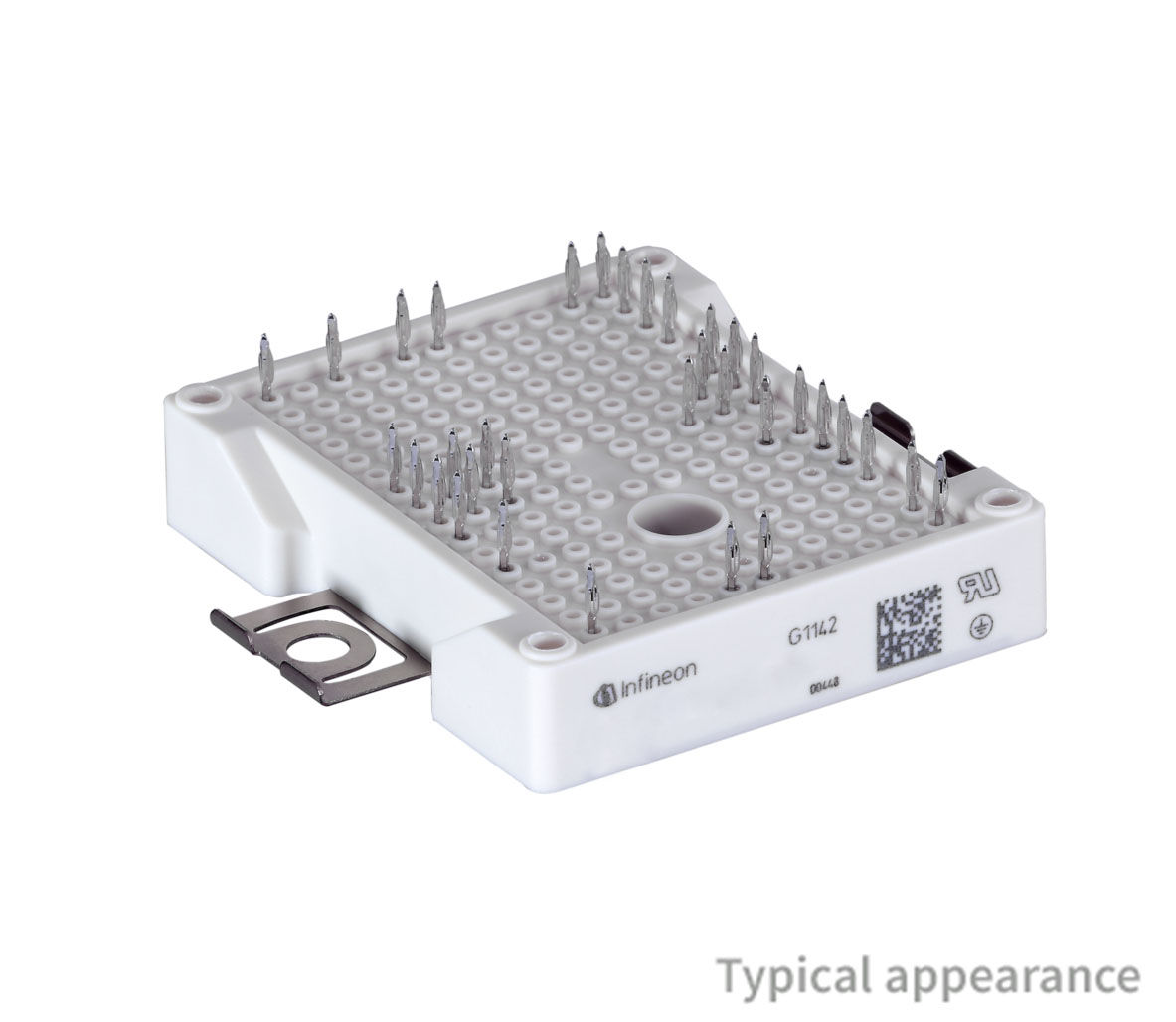

FB50R07W2E3_C36

650 V, 50 A PIM IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FB50R07W2E3_C36
FB50R07W2E3_C36
ea.
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (width)
    48 mm
  • Dimensions (length)
    56.7 mm
  • Features
    PressFIT
  • Housing
    EasyPIM™ 2B
  • IC(nom) / IF(nom)
    50 A
  • IC max
    50 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.45 V
  • VCES / VRRM
    650 V
  • VF (Tvj=25°C typ)
    1.56 V
  • Voltage Class max
    650 V
Recommended
OPN
FB50R07W2E3C36BPSA1
Product Status active and preferred
Infineon Package AG-EASY2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Compact design with rectifier & two channel PFC & inverter stage in one module
