Active and preferred
RoHS Compliant

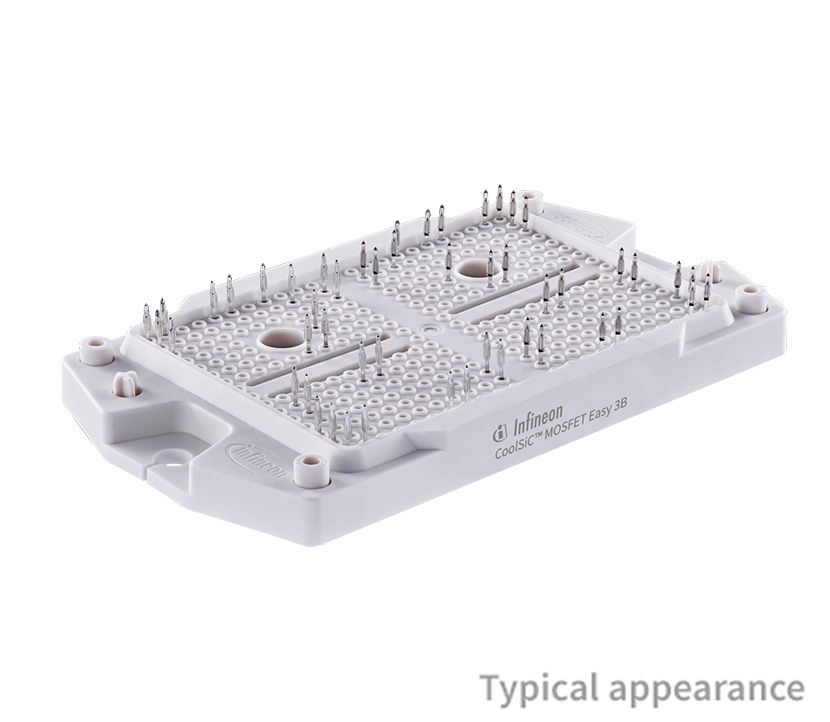

F4-6MR20W3M1H_B11

CoolSiC™ MOSFET fourpack module 2000 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F4-6MR20W3M1H_B11
F4-6MR20W3M1H_B11
ea.
Data Sheet

Product details

  • Applications
    ESS, EV Charger, Solar, DC-DC Conerter
  • Configuration
    Fourpack
  • Dimensions (length)
    110 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    Easy 3B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    5.1 mΩ
Recommended
OPN
F46MR20W3M1HB11BPSA1
Product Status active and preferred
Infineon Package AG-EASY3B
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY3B
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 3B, CoolSiC™ MOSFET fourpack module 2000 V, 6 mΩ G1 with NTC temperature sensor and PressFIT Contact Technology

Features

  • Best in Class packages with 12 mm height
  • Leading edge WBG material
  • Very low module stray inductance
  • PressFIT pins
  • Integrated NTC temperature sensor
  • Wide gate source voltage range
  • Low switching & conduction losses
  • Overload operation up to 175°C

Benefits

  • Outstanding module efficiency
  • System cost advantages
  • System efficiency improvement
  • Enabling higher frequency
  • Increase of power density
  • Compact design
  • Perfect fit for 1500 V DC-link
