Active and preferred
RoHS Compliant

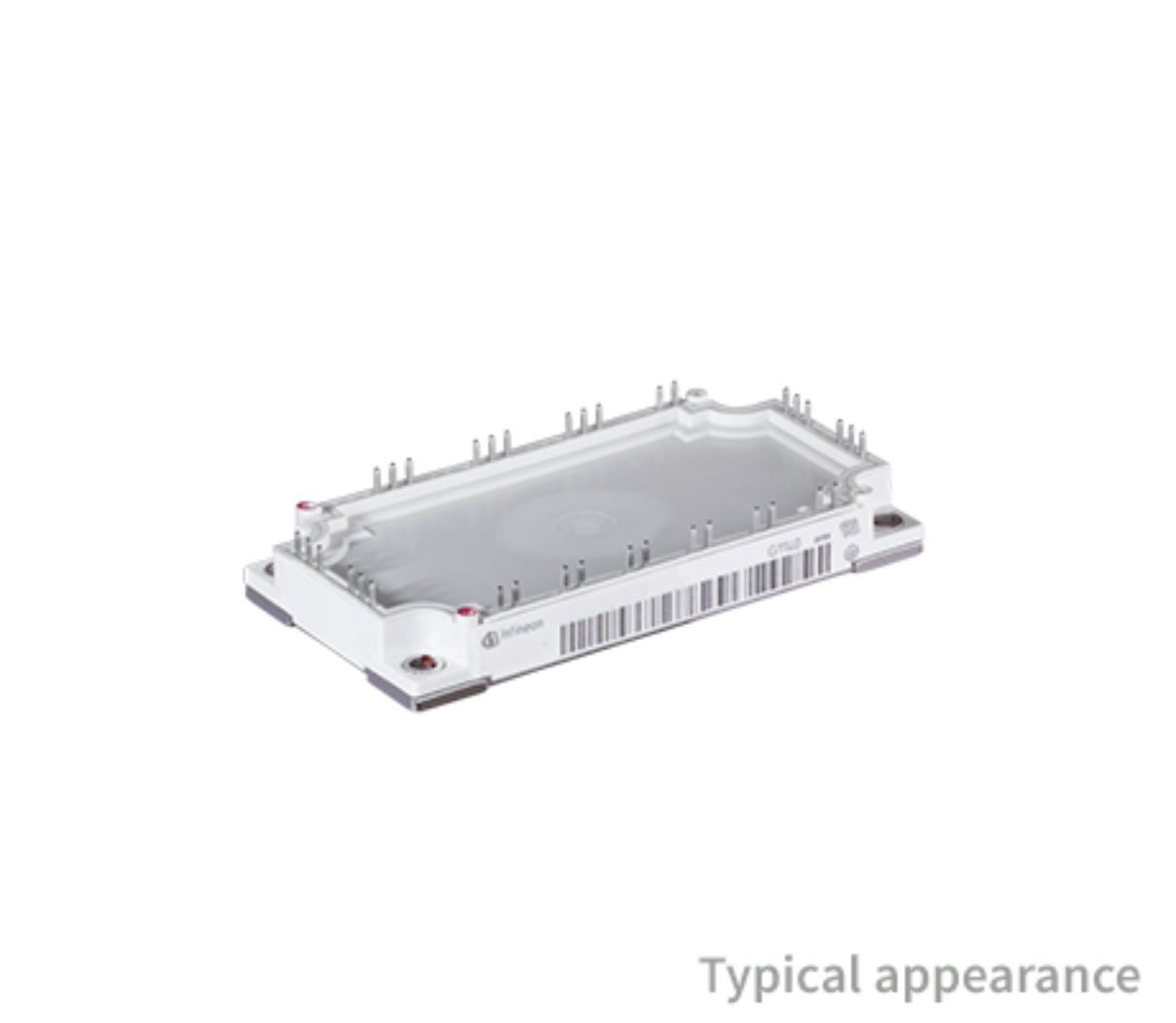

F4-150R17N3P4_B58

1700 V, 150 A fourpack input rectifier IGBT modules
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F4-150R17N3P4_B58
F4-150R17N3P4_B58
ea.
Data Sheet

Product details

  • Configuration
    Fourpack
  • Features
    Input rectifier, Solder pin
  • Housing
    EconoPACK™ 3
  • IC(nom) / IF(nom)
    150 A
  • IC max
    150 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - P4
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
Recommended
OPN
F4150R17N3P4B58BPSA1
Product Status active and preferred
Infineon Package AG-ECONO3B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO3B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPACK™ 3 1700 V, 150 A fourpack IGBT module with Trench/Fieldstop IGBT 4, emitter controlled diode, input rectifier and NTC.

Features

  • Low VCEsatwith positive temp. coeffici.
  • Established Econo module concept
  • Isolated base plate
  • Solder contact technology
  • RoHS compliant
  • Integrated rectifier
