F3L600R10W4S7F_C22

950 V, 600 A 3-level IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F3L600R10W4S7F_C22
F3L600R10W4S7F_C22
ea.
Data Sheet

Product details

  • Configuration
    3-level
  • Dimensions (length)
    150 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    EasyPACK™ 4B
  • IC(nom) / IF(nom)
    600 A
  • IC max
    600 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - S7
  • VCE(sat) (Tvj=25°C typ)
    1.63 V
  • VCES / VRRM
    950 V
  • VF (Tvj=25°C typ)
    2.6 V
  • Voltage Class max
    950 V
Recommended
OPN
F3L600R10W4S7FC22BPSA1
Product Status active and preferred
Infineon Package AG-EASY4B
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY4B
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

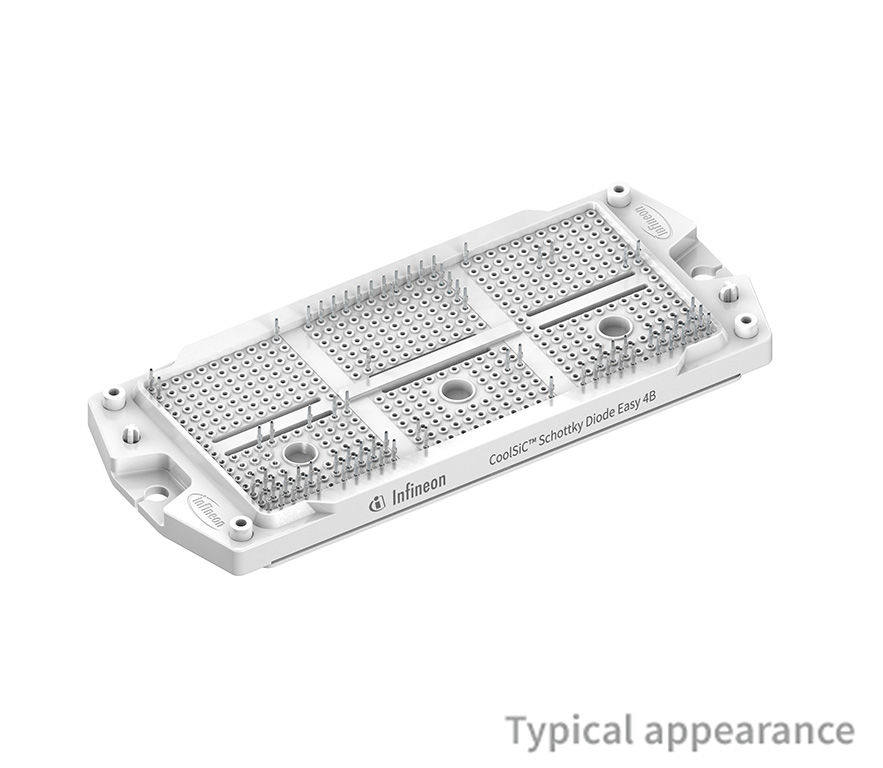

EasyPACK™ 4B 950 V, 600 A 3-Level IGBT module with TRENCHSTOP™ IGBT7 and 1200 V CoolSiC™ Schottky Diode .

Features

  • EasyPACK™ 4B with three substrates
  • ANPC topology with 4 fast switches
  • 950 V IGBT7 and 1200 V SiC diode
  • Optimized stray inductance
  • Improved hold-down concept
