Active and preferred
RoHS Compliant

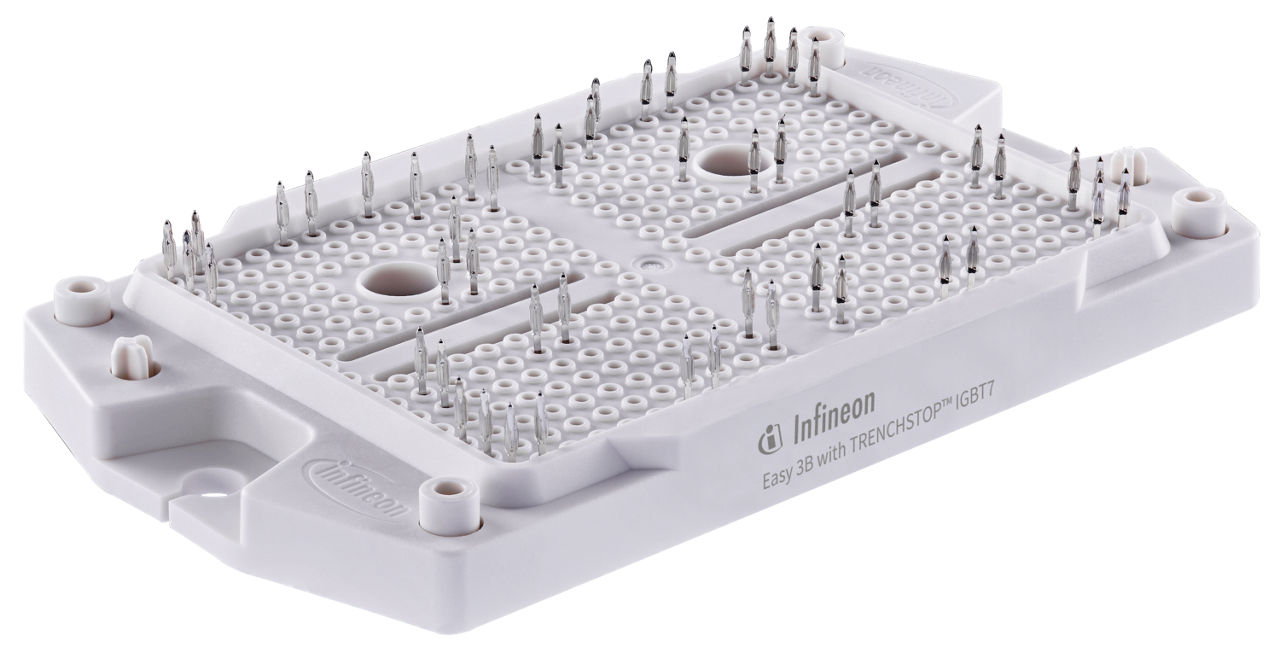

F3L500R12W3H7_H11

1200 V, 500 A 3-level IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F3L500R12W3H7_H11
F3L500R12W3H7_H11
ea.
Data Sheet

Product details

  • Configuration
    3-level
  • Dimensions (length)
    110 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    EasyPACK™ 3B
  • IC(nom) / IF(nom)
    510 A
  • IC max
    510 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - H7
  • VCE(sat) (Tvj=25°C typ)
    1.69 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    2.5 V
  • Voltage Class max
    1200 V
Recommended
OPN
F3L500R12W3H7H11BPSA1
Product Status active and preferred
Infineon Package AG-EASY3B
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY3B
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Best in Class packages with 12mm height
  • Tvjop under overload condition til 175°C
  • Low Vce sat
  • Humidity ruggedness
  • High current pins
  • Integrated NTC temperature sensor

Benefits

  • Max power rating til 150 kW is viable
  • Best cost-performance ratio
  • Lower system cost
  • Enables high frequency operation
  • Reduced cooling requirements
