ESDF200-B1-W0201

Bi-directional ESD protection and EMI filter device, 3.3 V, 65 pF
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESDF200-B1-W0201
ESDF200-B1-W0201
ea.
Data Sheet

Product details

  • CL
    65 pF
  • IEFT
    80A
  • IPP
    11A
  • Protected Lines
    1
  • Rdyn (forward)
    0.05 Ω
  • Rdyn (reverse)
    0.05 Ω
  • Vcl typ. reverse (@16A)
    5.4 V
  • VESD
    -20 kV to 20 kV
  • VWM
    -3.3 V to 3.3 V
Recommended
OPN
ESDF200B1W0201E6327XTSA1
Product Status active and preferred
Infineon Package
SG-WLL-3
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SG-WLL-3
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This Infineon ESD (electrostatic discharge) protection and EMI (electromagnetic interference) low pass filtering device has a bi-directional and symmetric I/V characteristic and excellent clamping performance.

Features

  • ESD / transient protection according to:
    - IEC61000-4-2 (ESD): ±20 kV (air) / ±20 kV (contact)
    - IEC61000-4-4 (EFT): ±4 kV / ±80 A (5/50 ns)
    - IEC61000-4-5 (Surge): ±11 A (8/20 μs)
  • Bi-directional maximum working voltage: VWM = ±3.3 V
  • Line capacitance and line resistance: CL = 65 pF at f = 1 MHz and RL = 100 Ω
  • Clamping voltage: Vcl = 5.4 V at ITLP = 16 A with Rdyn = 0.05 Ω
  • Very low leakage current: IL= 1 nA

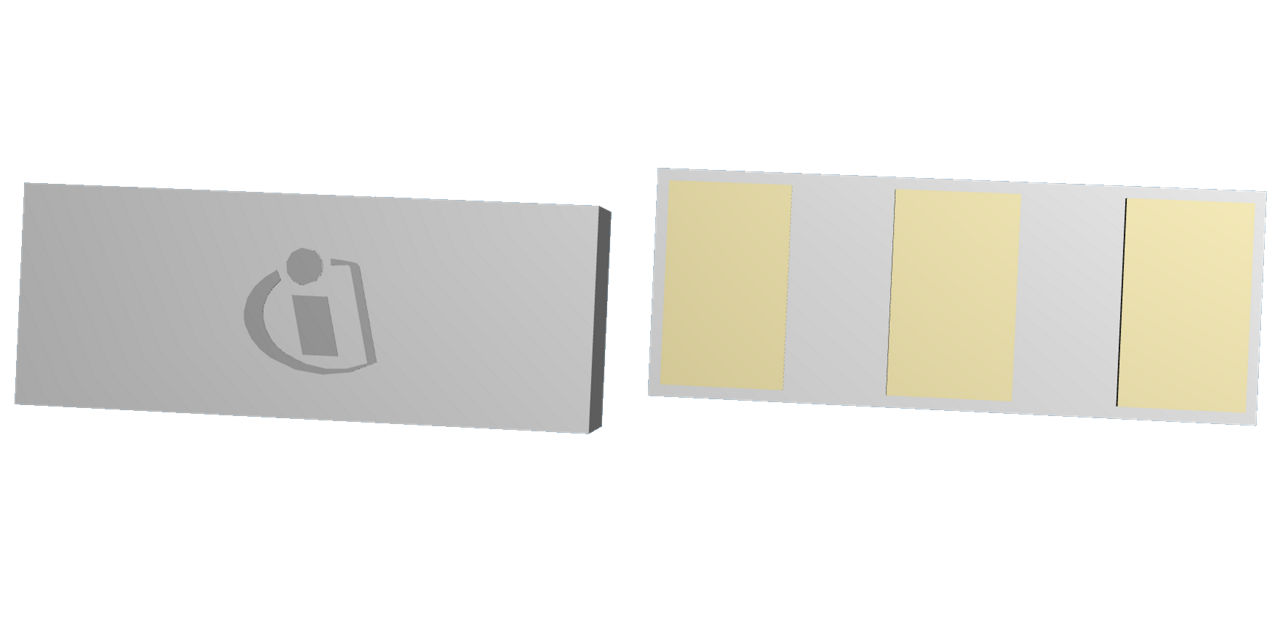

  • Small form factor SMD size 0201, low profile (0.73 x 0.28 x 0.15 mm³)

Benefits

  • EMI sensitive lines in mobile devices (low speed data, audio, buttons, GPIO)
