Active and preferred
RoHS Compliant
Lead-free

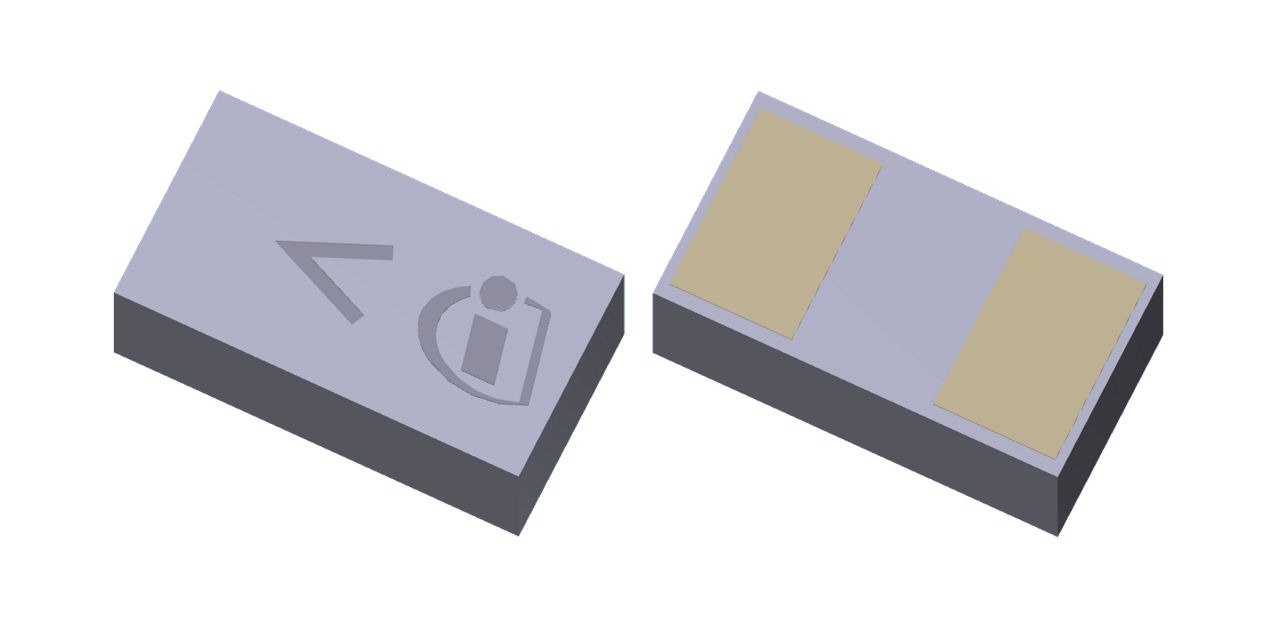

ESD227-U1-W01005

Uni-directional ESD protection device, 5.5 V, 1.4 pF, 01005
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESD227-U1-W01005
ESD227-U1-W01005
ea.
Data Sheet

Product details

  • CL
    1.4 pF
  • IEFT
    60A
  • IPP
    5A
  • IR
    0.1 nA to 50 nA
  • Protected Lines
    1
  • Rdyn (reverse)
    0.15 Ω
  • Rdyn (forward)
    0.11 Ω
  • Vcl typ. reverse (@16A)
    9.5 V
  • VESD min
    -20 kV
  • VESD max
    20 kV
  • VWM
    5.5 V
Recommended
OPN
ESD227U1W01005E6327XTSA1
Product Status active and preferred
Infineon Package
SG-WLL-2
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SG-WLL-2
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Low Clamping Voltage, Low Capacitance, Uni Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor) Uni-directional, 5.5 V, 1.4 pF, 01005, RoHS and Halogen Free compliant
