ESD166-B2-W0201

NEW
Two-line, bi-directional ESD protection device, 22 V, 0.13 pF, 0201
Data Sheet

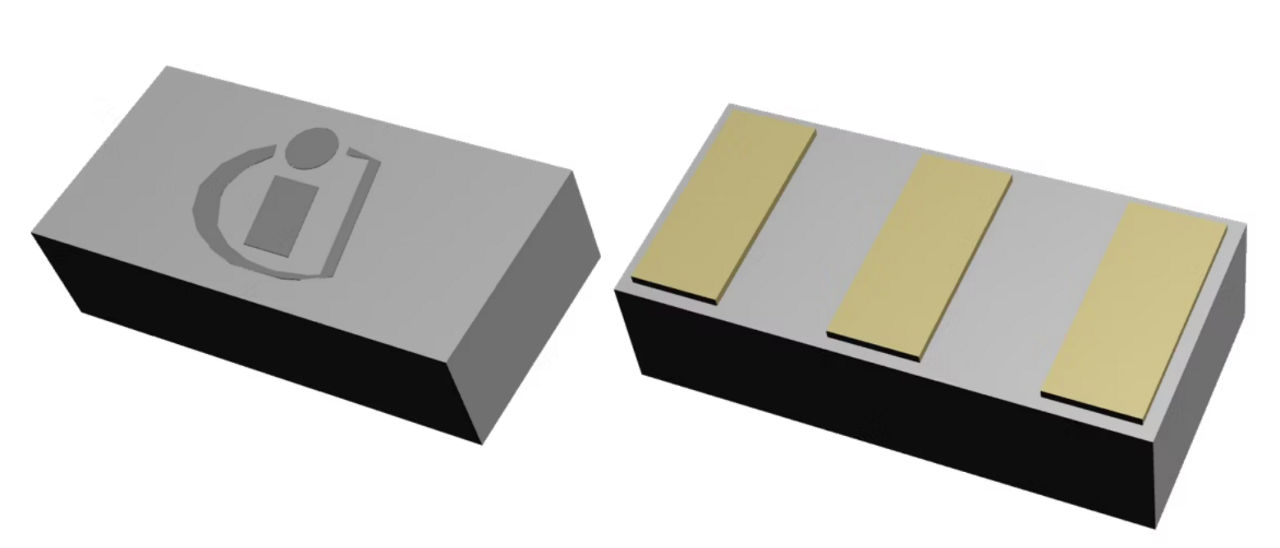

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESD166-B2-W0201
ESD166-B2-W0201
Data Sheet

Product details

  • CL max
    0.4 pF
  • CL
    0.13 pF
  • IEFT
    40 A
  • IPP
    8 A
  • IR max
    50 nA
  • IR
    0.1 nA
  • Protected Lines
    2
  • Rdyn range
    0.25 Ω to 0.25 Ω
  • VESD range
    -13 kV to 13 kV
  • VWM range
    -22 V to 22 V
Recommended
OPN
ESD166B2W0201E6327XTSA1
Product Status active and preferred
Infineon Package
SG-WLL-3-1
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
SG-WLL-3-1
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
This Infineon ESD (electrostatic discharge) protection device has an array with two identical elements having bi-directional and symmetric I/V characteristic and excellent clamping performance

Features

  • Maximum working voltage: ±22 V
  • Line capacitance: 0.13 pF at f = 1 GHz
  • Clamping voltage: 8 V at ITLP = 16 A
  • Very low leakage current: IL<0.1 nA
  • IEC61000-4-2 (ESD): ±16 kV (air)
  • IEC61000-4-2 (ESD): ±13 kV (contact)
  • IEC61000-4-5 (Surge): ±8 A (8/20 μs)
  • Small form factor: 0.58x0.28x0.15 mm³

Benefits

  • Low insertion loss
  • Low clamping
  • Bi-directional protection device
  • Small package
  • Two-line array

Applications
