DZ600N16K

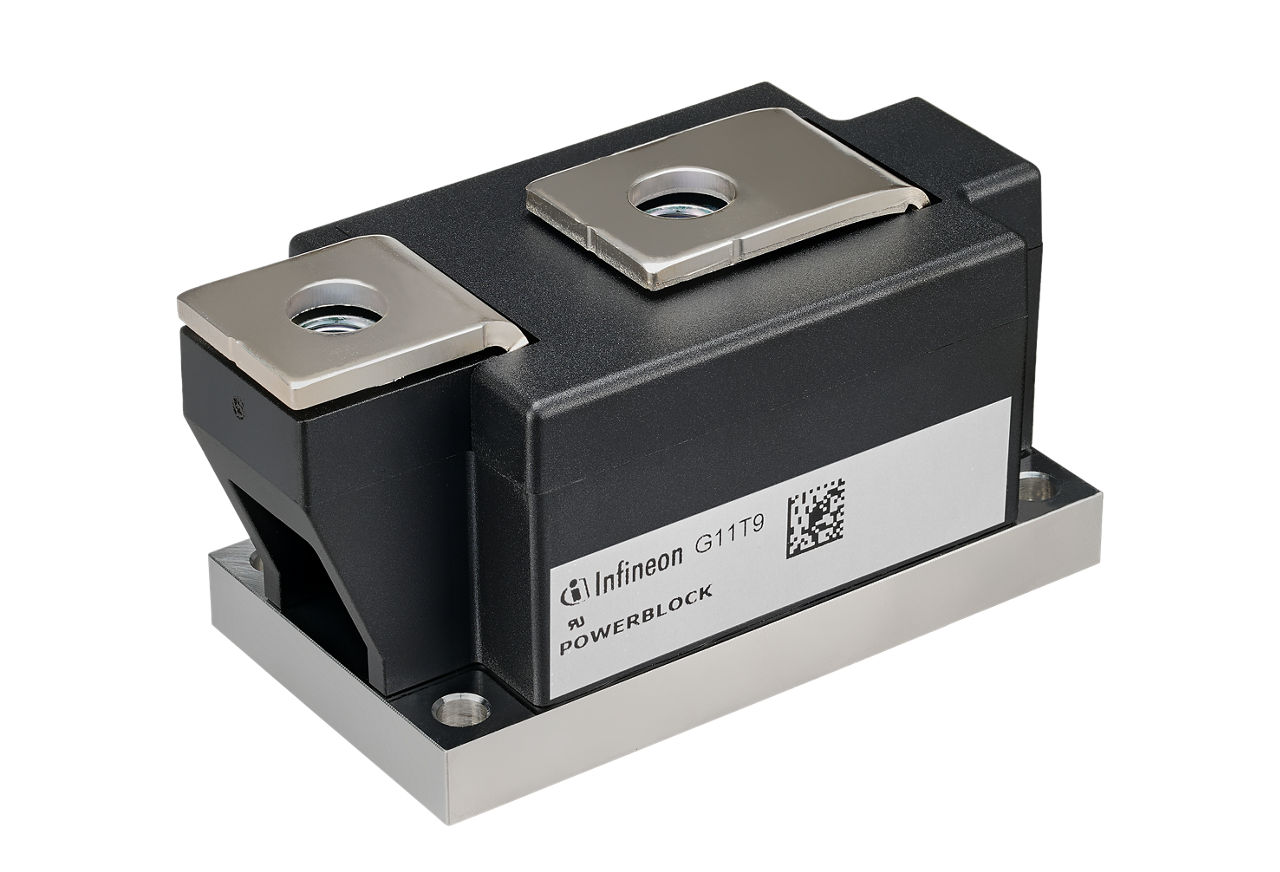

50 mm Single Rectifier Diode module with 1600 V in pressure contact technology
Datasheet
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DZ600N16K
DZ600N16K
Datasheet


Product details

  • Configuration
    Single Rectifier Diode
  • Housing
    50 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    600/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    19000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.22
  • RthJC [K/W] (@180° el sin)
    0.078
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.75
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1805

Recommended
OPN
DZ600N16KXPSA1 DZ600N16KHPSA1
Product Status active and preferred discontinued
Infineon Package BG-PB501EA-1
BG-PB501-1
Package Name N/A N/A
Packing Size 3 3
Packing Type TRAY TRAY
Moisture Level NA N/A
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free Yes No
RoHS Compliant Yes Yes
Country of Assembly (CoA)
HU
HU
Country of Diffusion (CoD)
DE
DE
Infineon stock last updated:
 ea. in stock
View replacement

Product Status
Active
Infineon Package BG-PB501EA-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
HU
Country of Diffusion (CoD)
DE

Product Status discontinued
Infineon Package
BG-PB501-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
HU
Country of Diffusion (CoD)
DE
View replacement
Single Rectifier Diode 50 mm Power Block 1600 V, 600 A module for phase control in pressure contact technology using an isolated copper base plate. Pressure contact modules provide a robust solution by blocking reverse current. They enable seamless redundancy and prevents cascading outages, resulting in higher system reliability and resilience with lower system costs.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness
  • High reliability

Benefits

  • Longer lifetime at high power cycling
  • Defined short-on-fail mode
