DZ540N26K

END OF LIFE

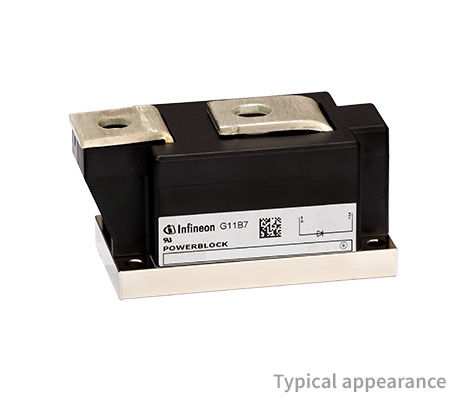

50 mm Single Rectifier Diode Module with 2600 V in pressure contact technology
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DZ540N26K
DZ540N26K
Data Sheet

Product details

  • Configuration
    Single Rectifier Diode
  • Housing
    50 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    540/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    14000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.31
  • RthJC [K/W] (@180° el sin)
    0.078
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    2600
  • VT0 [V] (@Tvj max)
    0.78
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    980
OPN
DZ540N26KHPSA1
Product Status discontinued
Infineon Package
BG-PB501-1
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
BG-PB501-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Single Rectifier Diode 50 mm Power Block 2600 V, 540 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness
