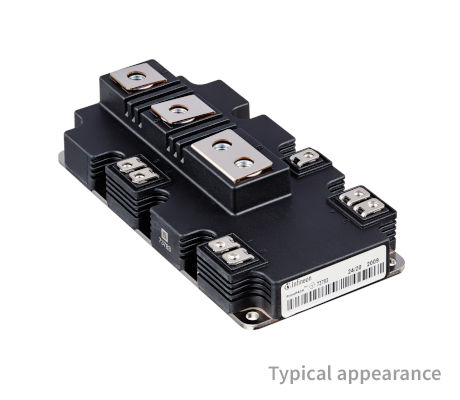

DF650R17IE4

1700 V, 650 A chopper IGBT module
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DF650R17IE4
DF650R17IE4
Data Sheet

Product details

  • Configuration
    Chopper
  • Dimensions (length)
    172 mm
  • Dimensions (width)
    89 mm
  • Housing
    PrimePACK™ 2
  • IC(nom) / IF(nom)
    650 A
  • IC max
    650 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    2 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.85 V
  • Voltage Class max
    1700 V
OPN
DF650R17IE4BOSA1
Product Status not for new design
Infineon Package AG-PRIME2
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package AG-PRIME2
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
PrimePACK™ 2 1700 V, 650 A chopper IGBT module with IGBT4 and NTC.

Features

  • Extended operation temp. Tvj op
  • High DC stability
  • High current density
  • Low switching losses
  • Tvj op = 150°C
  • Low VCEsat
  • Package with CTI > 400
  • High creepage & clearance distances
  • High power & thermal cycling capab.
  • Copper base plate
  • UL recognized
